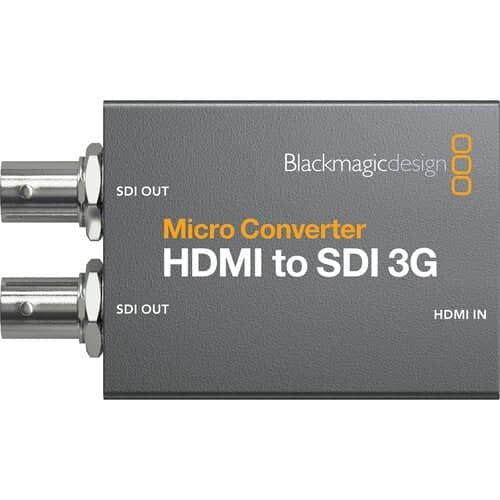

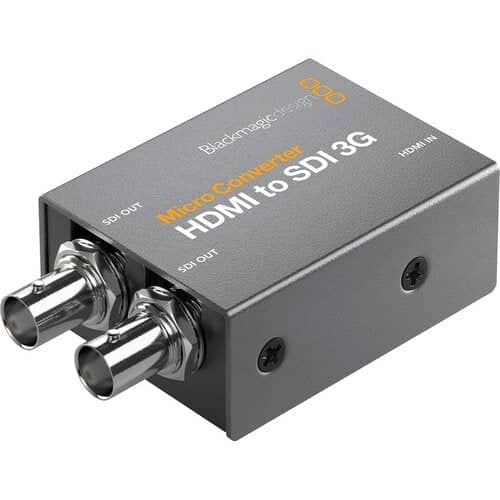

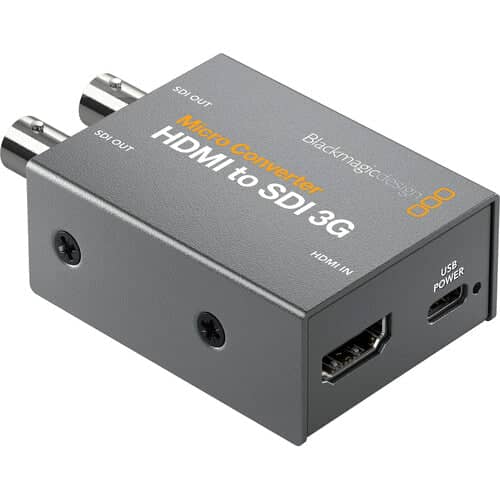

Blackmagic Design Micro Converter HDMI to SDI 3G 20 Pack (no PSU)

Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using an SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using a separately available 100-240 VAC power supply, complete with four international socket adapters.

Features:

Dual SDI Outputs

One HDMI input

Two 3G-SDI outputs

Selectable A and B level formats

Compact, Rugged Design

Robust metal housing and rugged connectors

USB Type-C port for powering via a compatible component like a monitor or laptop

Updatable via the USB Type-C port and your Mac or PC

SDI & HDMI Timecode

HD and SD timecode support

Converts HDMI timecode to SDI

SDI Re-Clocking

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs

Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

SDI support from NTSC and PAL up to DCI 2Kp60

HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

Supports embedded HDMI input and embedded SDI output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port

Separately available 100-240 AC power supply with four socket adapters
