BirdDog Flex 4K BACKPACK HDMI to Full NDI Encoder (Note: Does Not Currently Decode NDI HX|HX2|HX3 Feeds)

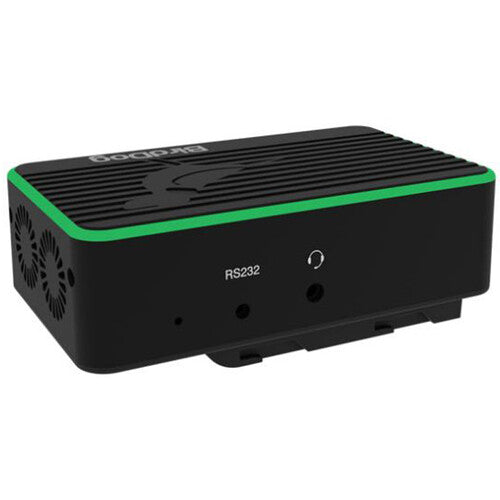

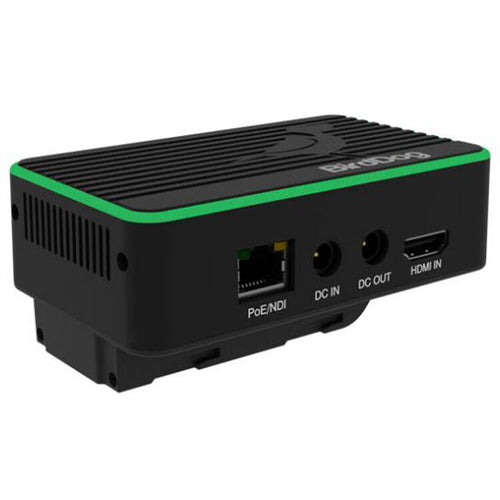

The Flex 4K BACKPACK HDMI Encoder from BirdDog is an ultracompact NDI interface for HDMI video sources. Connect your onboard monitor, camera, or other video source, and have it available instantly on your NDI-enabled network. The BirdDog BACKPACK supports up to UHD 4K30 and 1080p60 resolution video.

The versatile BACKPACK can be powered using a Sony L-Series-type battery, PoE, or the included AC power supply. A 15W DC output port enables you to power select monitors and cameras from your BACKPACK power source. Tally information is displayed for both the talent and the operator and passed through to compatible equipment. Connect a separately available cable to the 2.5mm RS232 port for pass-through control of non-NDI PTZ cameras. Additional features include an adaptive bitrate, a cooling thermal design, a 3.5mm audio input, and a 3.5mm headphone output.

Upgrade Your Monitor

Use the BACKPACK to encode NDI, power your monitor, and record simultaneously

Ultracompact Form

The BACKPACK is slightly larger than a credit card and weighs just over five ounces

Stay-Cool Design

A thermal design and quiet fans keep the BACKPACK cool even on the hottest days

Single Cable Plus DC Power

A single Ethernet port funnels NDI, Power, Video, Audio, Tally, and Audio Intercom while a DC output enables you to power select monitors and cameras

Tally Support

A built-in tally display is available for viewing by both your talent and camera operator

Flexible Power Options

Power the BACKPACK from the built-in Sony L-Series-type battery plate, using PoE, or via the DC input

PTZ Sidekick

Connect a PTZ control cable for PTZ pass-through control for your non-NDI PTZ camera

Adaptive Bit Rate

Select the bitrate that best fits your 4K or HD production

Software Tools

The BACKPACK includes free BirdDog Central Lite, Dashboard, and Comms Lite software

Key Features

• Ultracompact Form with HDMI 2.0 Input
• Supports up to UHD 4K30, 1080P60
• PoE, Sony L-Series & DC Power Options
• 15W DC Output to Power Monitor or Camera
• Halo Tally for Talent & Operator
• Supports BirdDog Comms
• BirdDog Link Support
• Includes an AC Power Supply
