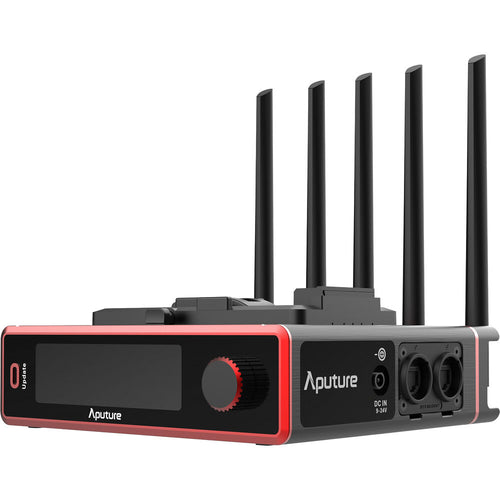

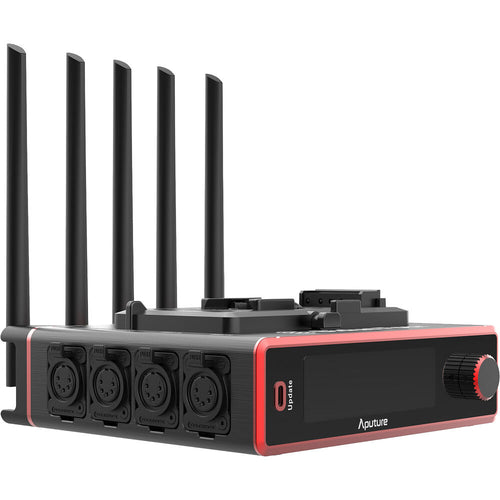

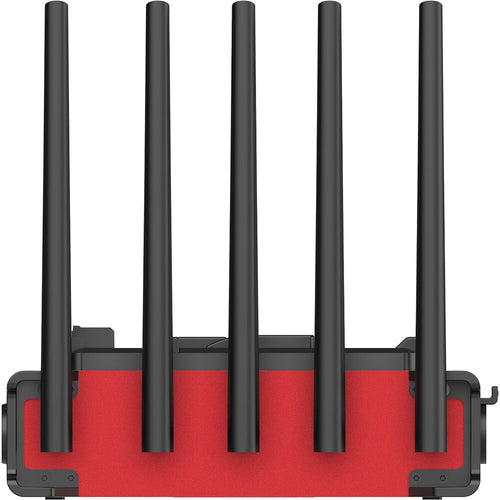

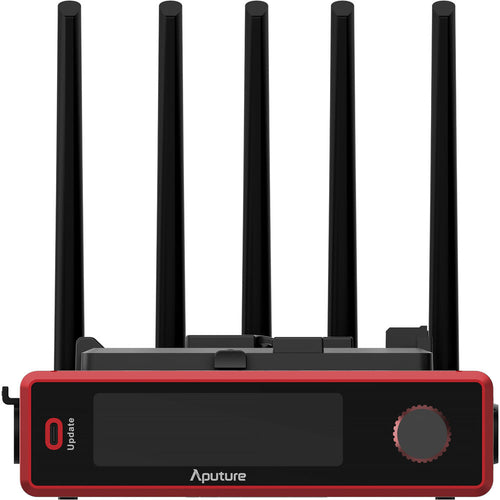

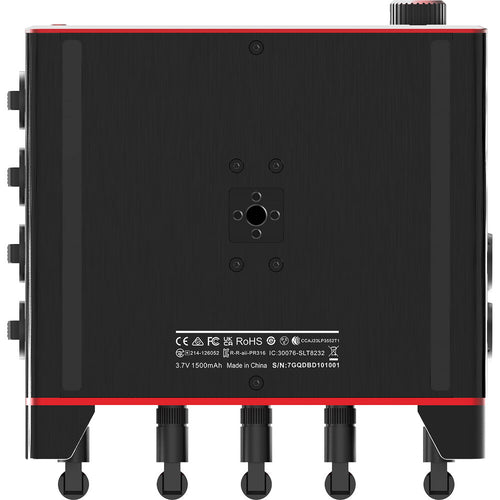

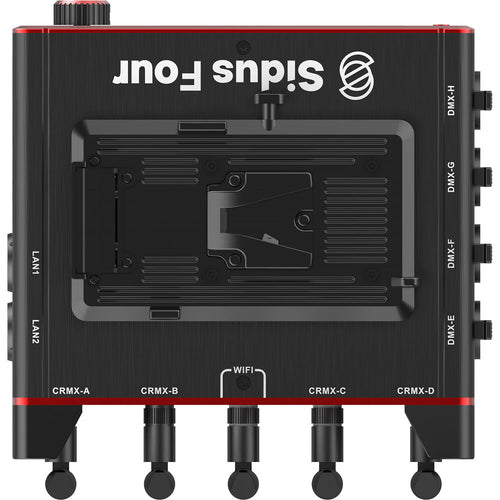

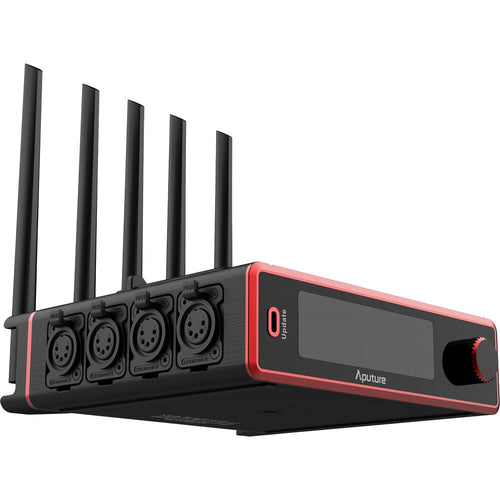

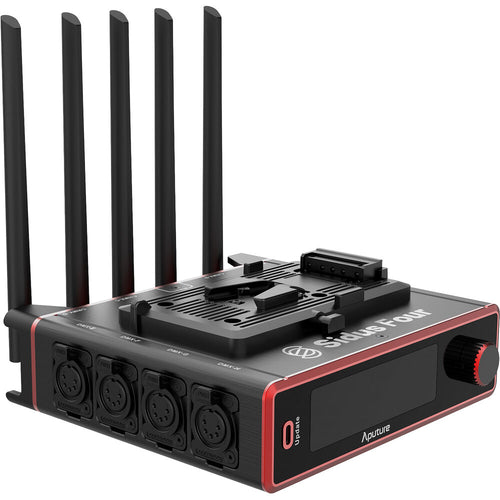

Aputure Sidus Four - 4 Universe CRMX Transmitter

Transmit control via wired and wireless connections to up to 8 universes with the Sidus Four 4-Universe CRMX Transmitter. The Sidus Four is a battery-powered transmitter that features four wired 5-pin DMX512 bidirectional ports and support for up to four wireless outputs using CRMX, DMX512, Sidus, Art-Net, and sACN protocols via Wi-Fi, Bluetooth, or Ethernet. The Sidus Four can be expanded to support even more universes.

Other features include a large TFT LCD display, 2.4/5 GHz Wi-Fi, 100 Mb/s Ethernet, a V-mount battery plate, and an internal 1500mAh backup battery for uninterrupted operation for up to 80 minutes. The unit's durable, IP65-rated construction makes it available for use in any filmmaking environment.

Up to Eight DMX Universes

The Sidus Four is a four-universe CRMX transmitter with a built-in wireless router and Ethernet node that supports up to four additional wired DMX universes with its bidirectional 5-pin DMX512 ports. With both wired and wireless in operation, Sidus Four can transmit up to 8 DMX universes.

Transmit Any Protocol

Combined with its high-output dual-band antennas, the Sidus Four is a powerful transmitter for the all popular lighting protocols. It can act as a CRMX/DMX transmitter and a Wi-Fi or Ethernet-based sACN/Art-Net Node.

Quick Network Troubleshooting

The Sidus Four's display screen features an intuitive user interface that clearly communicates network vitals, empowering users to quickly troubleshoot their network health without needing to dive into complex menus.

Minimal Frequency Interference

The transmitter features 2.4 GHz CRMX and 5.8 GHz Wi-Fi operating frequencies, mitigating the risk of network interference due to frequency overlap and improving network reliability.

Wired Connectivity Options

The Sidus Four comes features two 100 Mb/s Ethernet RJ45 ports as well as four bidirectional DMX512 XLR ports.

Power Options

With a built-in V-mount battery plate and an 80-minute internal backup battery, the Sidus Four provides multiple battery solutions to choose from to power their device with redundancy.

Weather-Resistant

Made for professional filmmakers and lighting technicians, the Sidus Four is built with a durable IP65-rated dust- and water-resistant construction for use in any environment.

Key Features:

Transmit to up to 4 Universes and 4 Wired DMX Universes with its Bidirectional 5-pin DMX512 Ports

CRMX, Sidus, Art-Net, Sacn Support

5.8 GHz Over Wi-Fi; 2.4 GHz Over CRMX

Wireless Range: Over 790m (Wi-Fi/CRMX)

IP65 Weather Resistant for Outdoor Use

Four Bidirectional Wired DMX512 Ports

Built-In Wireless Router/Ethernet Node

Sidus via Bluetooth

V-Mount Plate & Internal 1500mAh Backup Battery for Uninterrupted Operation for up to 80 minutes

Sidus Four's Display Screen Features an Intuitive User Interface

What's in the Box:

Aputure Sidus Four 4-Universe CRMX Transmitter

5 x Dual-Band Antenna

3/8" to Baby Pin Receiver Adapter

18W / 9V Power Adapter

Power Plug Set

5-Pin XLR Male to 5-Pin XLR Male Adapter

Hard-Shell Case
