The Anton Bauer VCLX NM2, Charger and 4 foot charger cable package is a 14.4V, 28V and 48V 600Wh NiMH battery that provides dual simultaneous outputs and is ideal for high current applications. Power output is via two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28V or 48V. This battery connects to the VCLX 2 charger and using an advanced charge algorithm allows the fastest charge on the block battery market. Information such as the product ID, learned capacity, cycle count, time stamped errors, condition of the battery packs, and more is viewable either on the VCLX or through Anton Bauers Fleet Management program, which is made possible by the built in Wi-Fi. Smart electronic fuses controlled internally will prompt a warning on the LCD and will automatically reset and self-heal when the battery detects it is safe to do so.  This event is also recorded internally with date and time stamp for reviewing via Fleet Management.

Also built into the battery is an 2.4" LCD screen that accurately displays the percentage of remaining battery capacity at all times so you can perform real-time onboard diagnostics to keep your battery and equipment performing perfectly.

To protect against damage to the battery, this battery has a low voltage cut-off feature which will automatically shut off the battery at 12 volts.

The VCLX NM2 package includes the VCLX NM2 battery, VCLX NM2 charger and VCLX NM2 48” charging cable.

Microprocessor Fuel Computer

Accurately monitors the energy put into and taken out of the battery. This data is processed with sophisticated programs that take into account battery age, self-discharge, charge/discharge rate, cell imbalance, and previously experienced charge/discharge cycles. The battery constantly "learns" its precise state of charge and remaining capacity. This data is automatically transmitted to the charger.

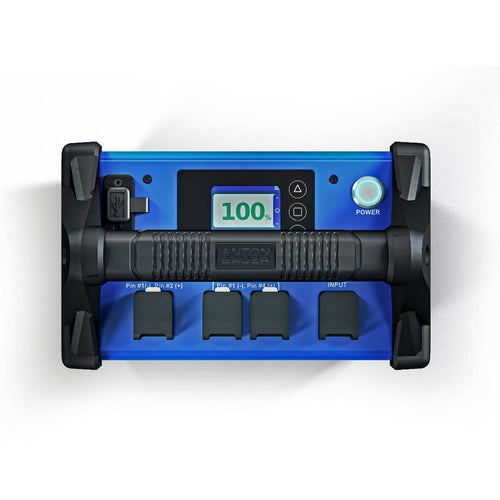

Integral RealTime LCD

Monitor for user interaction and 3 tactile buttons for menu navigation. Accurately displays the percentage of remaining battery capacity at all times.

Multi-Voltage Output

The multi-voltage output, both 14.4, 28V and 48V makes this battery unique, making it the perfect application for film cameras, monitors, lights and many more accessories.

High Current Output

Allows for 24 amp current drawn from 14.4 volt outputs and 16 amp draw from 28 volt outputs or 12 amp from the 48V.

Case Design

Anodised lightweight aluminium chassis and bolted aluminium handle with durable over-molded elastomer end caps and handle grip. VCLX NM2 battery protects the cells from impact and normal operating use.

Individual Computer Testing

Like all professional Anton/Bauer batteries, this battery has been individually computer tested, for assurance of optimum capacity, voltage, and overall quality.

Low Voltage Cut-Off

The battery has a low voltage cut-off to protect against damage to the battery. The low voltage cut-off is set to 12V.

Specifications

• Range VCLX

• XLR Connector Yes

• XLR Inputs Yes

• Camera Interface 2 X 4-Pin XLR (14.4v), 1 X 3-Pin XLR (28v or 48V)

• Chemistry Nickel Metal Hydride

• Voltage Multi

• Capacity 600 Wh

• Max load 700 W

• Max current 24 Amps

• Power tap No

• USB Yes

• Weight 13.30 kg

• Height 255 mm

• Width 330 mm

• Depth 153 mm

What's in the Box

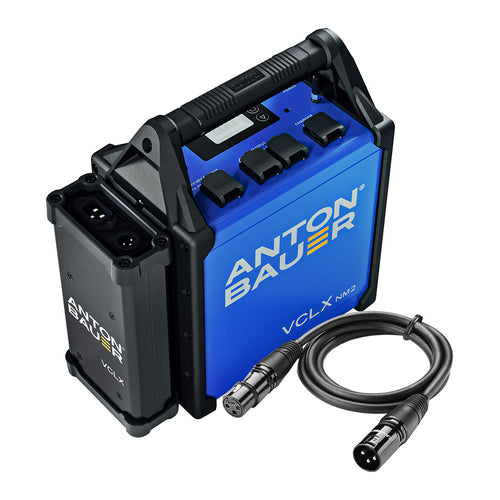

• Anton/Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery

• Anton/Bauer VCLX 2 Charger for VCLX NM2 Battery

• IEC US Power Cord

• Anton/Bauer XLR Charging Cable for VCLX 2 Charger (48")
