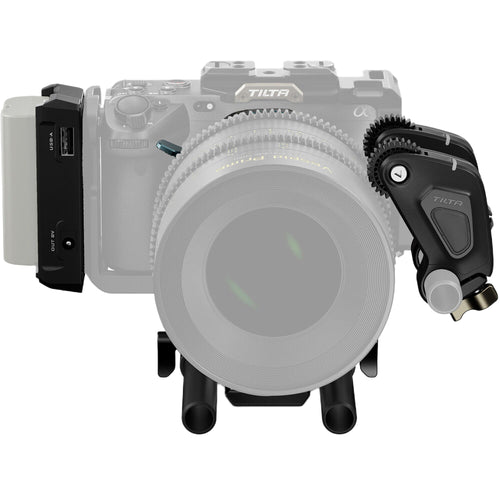

Tilta Nucleus Autofocus Adapter & Dual Nano II Motor Kit

Use Sony's autofocus system with high-end or vintage PL-mount lenses on your FX3, FX30, or FX6 cinema camera with the Nucleus Autofocus Adapter Base Kit from Tilta. This kit includes a Sony E to ARRI PL-mount lens autofocus adapter, a 15mm rod adapter, two 15mm rods, a USB-C to 7-pin LEMO-type power cable, and a USB-C dual-motor Y-cable.

Native Sony Autofocus Support

Unlock Sony's advanced autofocus capabilities when using PL-mount cine lenses. The adapter enables native real-time face tracking and eye autofocus, allowing you to combine professional cinema optics with Sony's intelligent autofocus system for smoother, more reliable subject tracking.

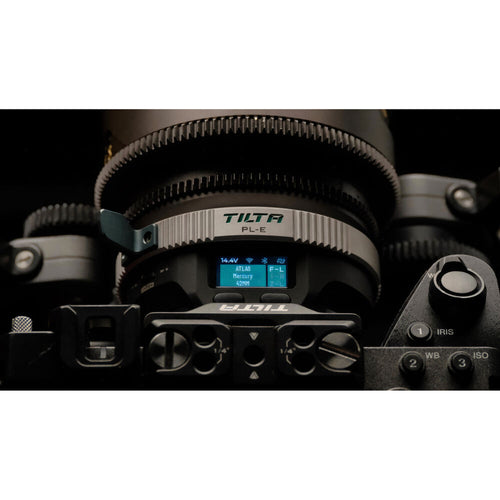

Seamless Focus & Lens Control

Easily switch between manual and autofocus modes through the Nucleus ecosystem, giving you the flexibility to perform precise focus pulls or racks whenever required. The adapter also features a built-in lens library for selecting and sharing lens data with compatible devices. Lens information can be stored directly on the adapter, accessed through a Nucleus II or Nano II handwheel, and custom manual calibrations can be saved for future use.

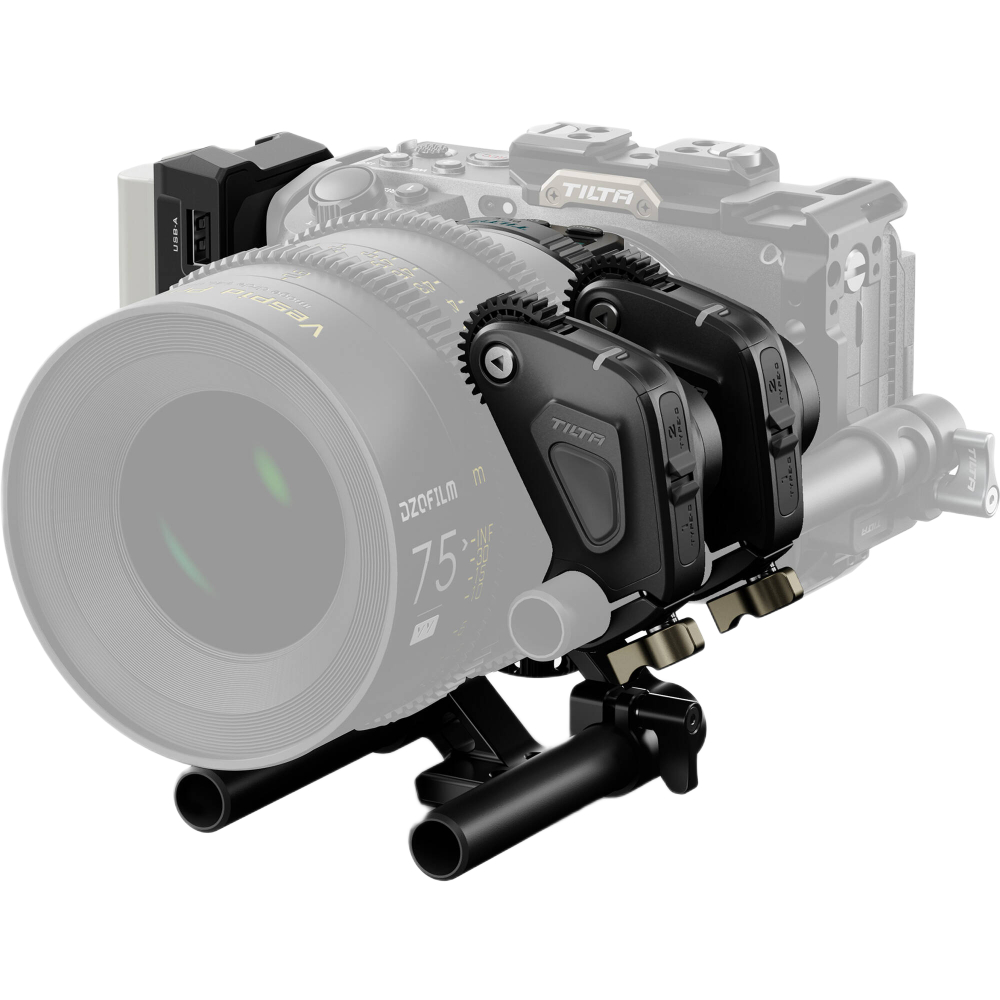

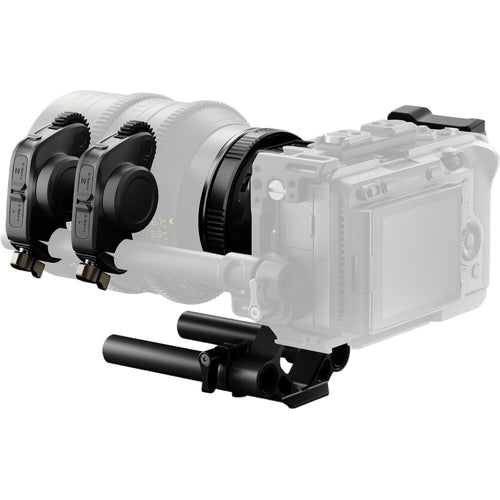

Dual Motor Compatibility

Designed for advanced lens control, the adapter supports operation with a wireless focus motor and can also be configured with dual motors using the included cable. This setup enables simultaneous focus and iris adjustment, providing greater control for demanding cinematic productions.

Tilta Nucleus Nano II FIZ Lens Control Motor Kit

With increased torque and both USB-C and Wi-Fi connectivity, the Nucleus Nano II FIZ Lens Control Motor Kit from Tilta includes an upgraded motor designed to power the zoom, focus, or iris functions of your FIZ system. The motor drive is positioned in an offset orientation from the main gearing to prevent the motor from pushing away from the lens during use. A 0.8 MOD gear ensures compatibility with most cinema-standard lenses.

Two USB-C ports on the motor-one I/O and one input only-power the motor and can pass power through to multiple motors to control FIZ from a single source. Built-in 2.4 GHz Wi-Fi connectivity can pair the device with the separately available Handwheel Controller or Control Handle. Pair the device using the onboard pairing button and use the LED indicator to set its function. An integrated 15mm single rog clamp attaches the motor to your rig. Expand compatibility to other DSLR and mirrorless lens models with the included lens adapter ring.

Tilta L-Series Battery Plate (Black)

Power your camera and accessories mounted on a full or half cage with this Tilta gray L-Series Battery Plate from Tilta. The plate mounts one Sony NP-F970 L-series battery and features DC barrel and USB outputs to power your camera and additional accessories. It is constructed with durable aluminium with stainless steel components.

The battery plate features one 8 VDC 2.1mm barrel output and one 12 VDC 2.5mm barrel output on either side. It also features a 5 VDC USB-A port on one side to power small accessories like a smartphone, and on the other side a USB-C port allows you to charge the battery via its 18W PD input or it provides charging output. The plate also features a 1/4"-20 screw with anti-twist pins for mounting onto the cage, and soft padding prevents slipping and scratching when mounted.

Key Features:

Enables Sony AF with PL Lenses

Compatible with FX3, FX30 & FX6

Built-In Lens Profile Library

Supports Two Wireless Motors

Custom Lens Calibration Support

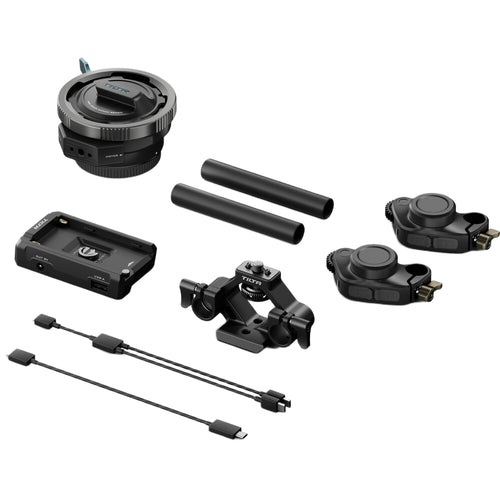

What's in the Box:

Tilta Nucleus Autofocus Adapter & Dual Nano II Motor Kit

Tilta L-Series Battery Plate (Black)

Tilta DSLR Lens Follow Focus Adapter

Tilta Nucleus Nano II FIZ Lens Control Motor Kit

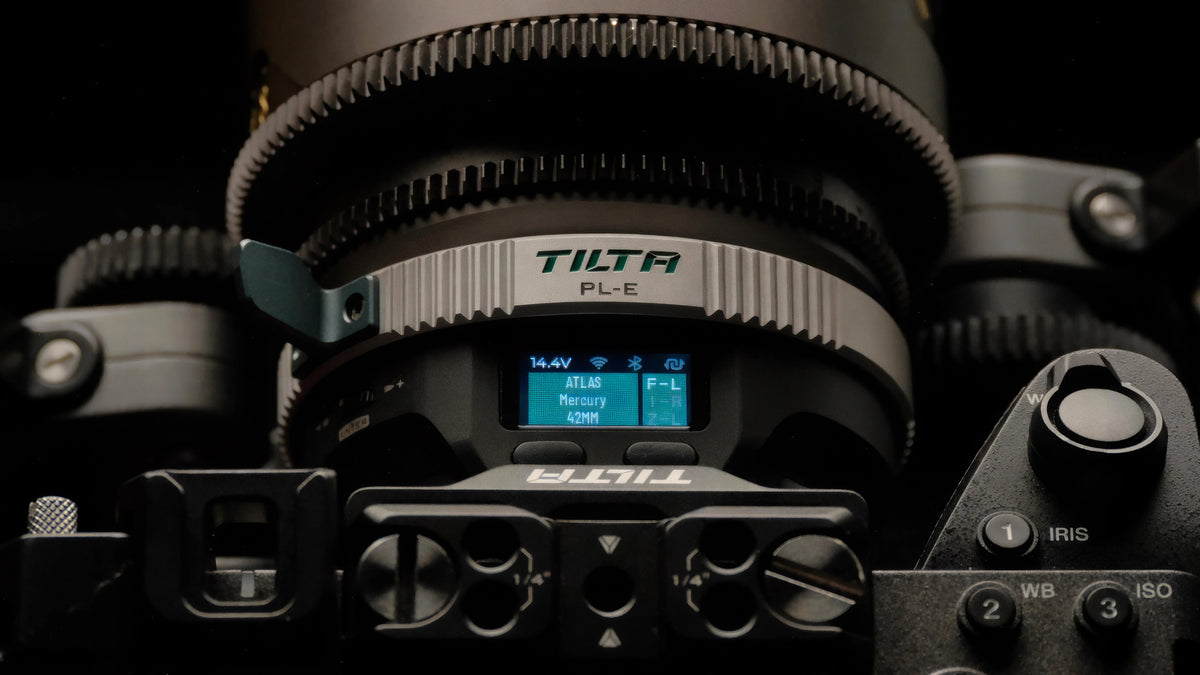

Nucleus Autofocus Adapter

15mm Rod Adapter

Aluminium 15mm Rod (3.9")

7-Pin LEMO-Type to USB-C Cable (14.2")

USB-C Control Y-Cable (13.8")

Allen Wrench

USB-C Power Cable (11.8")

1/4"-20 Screw
