Tilta Hydra Alien Pro Car Mounting System (V-Mount)

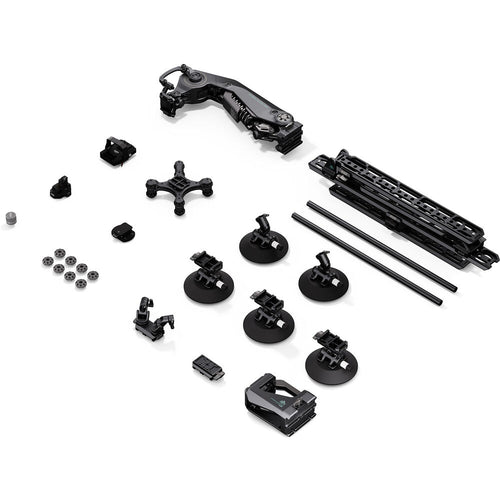

Grab some smooth motion shots using a car-mounted camera rig with this Hydra Alien Pro Car Mounting System from Tilta. The kit includes the full Hydra Alien Pro mounting system that features a series of rods, dovetail plates, and suction cups, as well as a shock-absorbing arm, shock-absorbing head, power supply baseplate, dual V-mount plate, counterweights, swappable shock absorber kit, safety tether, a mount adapter for a DJI Ronin series gimbal, and power cables.

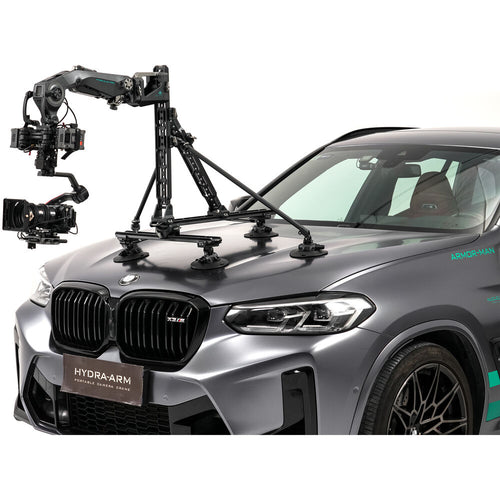

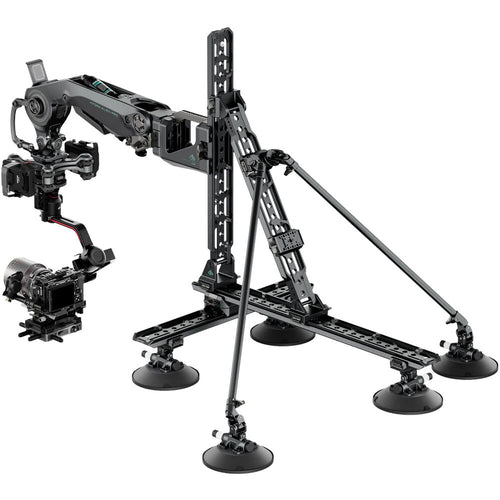

Hydra Alien Pro Car Mount

The Hydra Alien Pro car mounting system utilises a highly customisable combination of dovetail plates and strong suction cups that allow users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting onto a vehicle. The updated Pro design features added safety features such as retractable safety pins and a sliding design for small adjustments.

Camera Mounting

The updated Pro arm is designed to mount and unmount a larger gimbal, such as an RS4 Pro and Ronin 4D, using Manfrotto dovetail plates, and there are multiple safety pins and knobs to keep your gear secure. Multiple 1/4"-20 and 3/8"-16 threads provide additional mounting points.

Load Capacity

The arm supports loads using different tension settings and a number of counterweights:

Up to 13kg with the heavy setting, with rigs such as DJI RS4 Pro or Ronin 4D with a cinema camera

Up to 9.97kg with medium setting, with rigs such as midsize gimbals like the MoVI Pro or DJI Ronin M with a compact cine camera

Up to 6.98kg with the light setting, with rigs such as the DJI RS series gimbals with a mirrorless camera or the Ronin 4D

Power and Control

The dual V-mount provides power to the arm via the 12-17V power input. There is also a power output to keep your gimbal powered. You can remotely control the shock-absorbing head's payload mode and damping from 0 to 100 with the separately available Nucleus Nano 2 from up to 328' away. Damping tension can be adjusted, and the USB-C port on the arm allows you to upgrade the firmware with future releases.

Shock-Absorbing Head

The shock-absorbing head features two types of shock absorbers that can be swapped out in sets of four on the individual posts of the head for heavier or lighter loads. It prevents shake and reduces high-frequency vibration. A Manfrotto-style quick release plate allows you to mount your camera rig or gimbal.

Touchscreen OLED Display

The built-in touchscreen status display provides onboard control of damping tension, battery level, payload level, and wireless signal status.

Compatible Gimbals

The shock-absorbing head can pair with the following gimbals:

DJI RS 4 Pro

DJI Ronin 4D

DJI Ronin-M

Key Features:

Full Car Mounting System with Arm

Shock-Absorbing Arm for Hydra Alien Pro

Shock-Absorbing Head, Counterweight Set

Dovetail Plate Set, 6" Suction Cups

19mm Rods, Accessory Mounting Plate

Power Supply Base, Dual V-Mount Plate

Swappable Shock Absorber Kit

DJI Ronin Mount Adapter

Real-Time OLED Touch Control Display

Built-In Damping and Payload Settings
