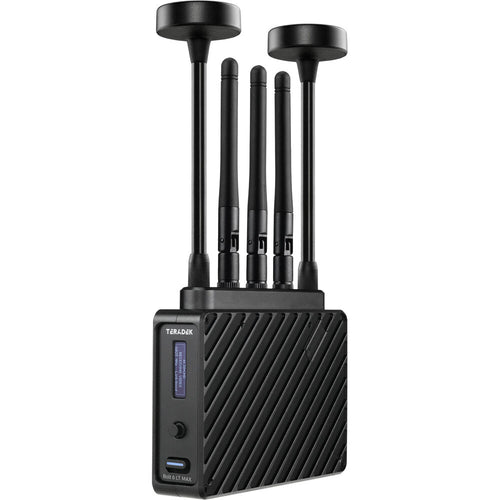

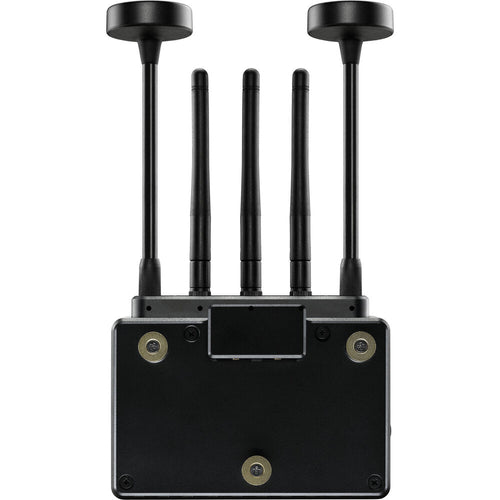

Teradek Bolt 6 LT Max RX Gold Mount

Receive lossless HD video from up to 5000' line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support, and this new Bolt 6 line supports the 6 GHz wireless band, which is now freely available. The receiver features a bright OLED display and outputs up to UHD 4K30 video via HDMI and up to 1080p30 via 3G-SDI. A Gold mount battery plate is included to power the receiver using a separately available high-capacity Gold mount battery.

The receiver supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. Other features include HDMI/SDI signal cross-conversion; HDR workflows that support HDR-10, PQ, and HLG standards; LUT control on outputs; and extended metadata, timecode, and start/stop trigger transmission over wireless. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports the desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyser, channel selection tools, and remote configuration. There are 1/4"-20 and 3/8"-16 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features:

Supports New 6 GHz Frequency Band

Receive Video from up to 5000'

HDMI and 3G-SDI Outputs, Zero Delay

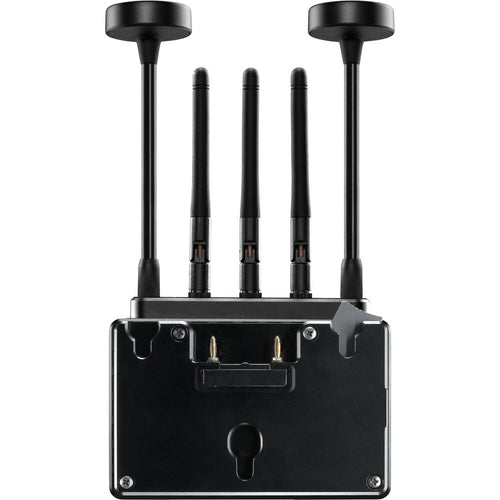

Gold Mount Battery Plate

Receive up to 4K30 Video, 10-Bit 4:2:2

Also Compatible with Bolt 4K 5G Devices

AES-256 Encryption, 5 Antennas

Bluetooth Mobile App, Spectrum Analyser
