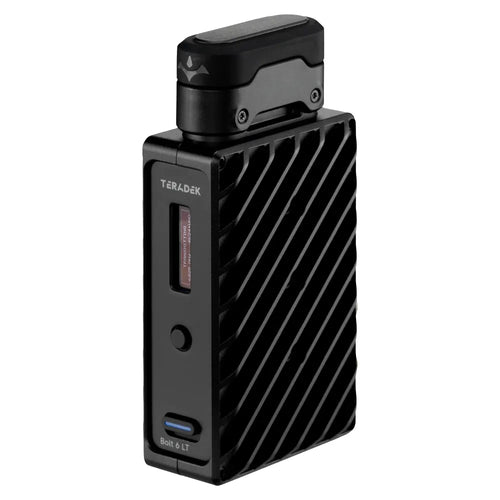

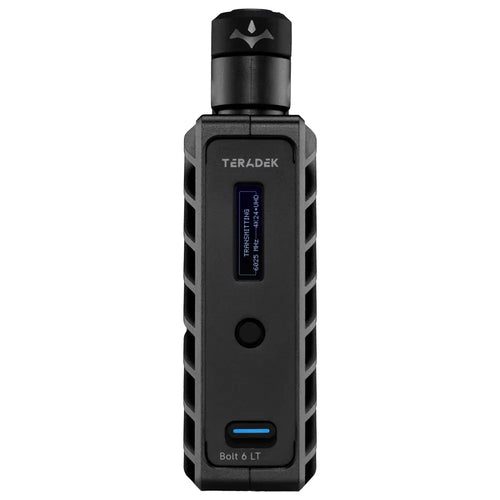

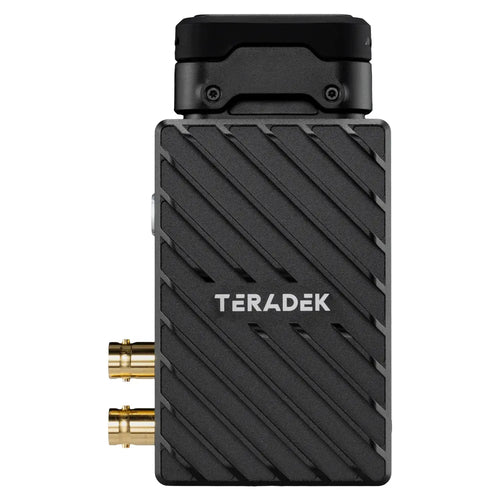

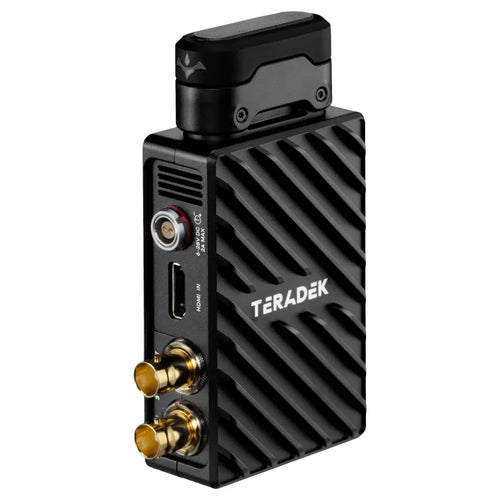

Teradek Bolt 6 LT 1500 Internal Antenna TX

Transmit lossless HD video up at distances up to 457meters with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas from Teradek. The transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support and supports the 6 GHz wireless band. This transmitter unit provides a powerful signal that can travel up to 750' line of sight and features a sleek form with all antennas tucked inside, a bright OLED display, and an SDI loop output.

Sleek Design with Internal Antennas

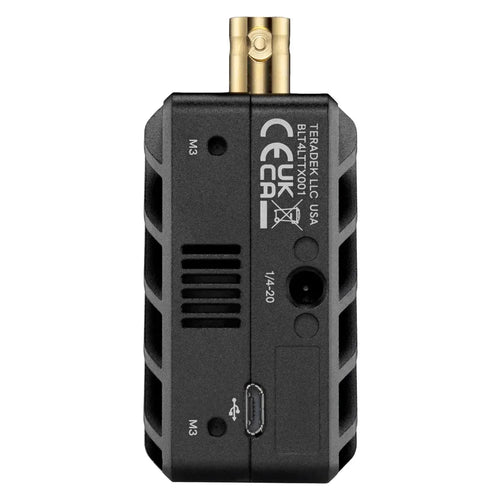

The antennas in this transmitter are all tucked inside, producing a sleek, compact form. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Transmits to up to Six Receivers

The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Cross-Compatibility

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyser, channel selection tools, and remote configuration.

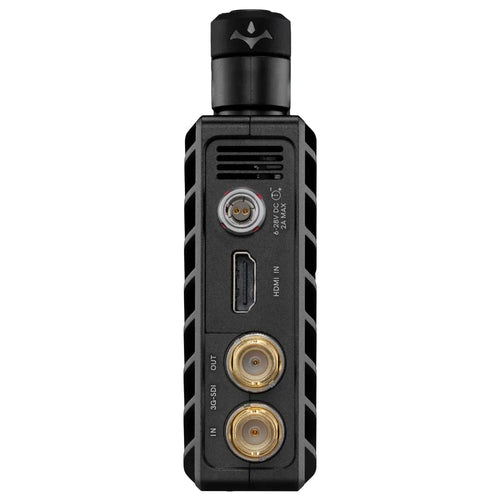

The system supports HDMI input up to UHD 4K30 and wirelessly transmits video at resolutions up to 4K30, while also accommodating SDI input up to 1080p60 with SDI loop-through output for flexible integration into professional video workflows. It supports Rec. 2020 HDR in a 10-bit 4:2:2 colour gamut, delivering accurate colour reproduction and high dynamic range performance for broadcast and production environments. An SDI Eye Pattern Tool enables users to verify SDI cable integrity and maintain signal reliability, while the companion iOS and Android application connects via Bluetooth to provide a spectrum analyser and remote configuration tools for streamlined monitoring and control.

Key Features:

Supports 6 GHz Frequency Band

Internal Antenna Compact Design

Transmits Video up to 457 m

Connects to Six Receivers

10-bit 4:2:2 HDR Support

What's in the Box:

Teradek Bolt 6 LT 1500 Internal Antenna TX

Bolt 6 LT 1500 TX Internal Antenna

2pin to P-Tap Cable, 457mm

2pin to AC Adapter 18W, 1.8m

Ultra Thin HDMI Male to Male Cable, 457mm

SDI Cable, 254mm

USB-C 2.0 Male to Male, 1m
