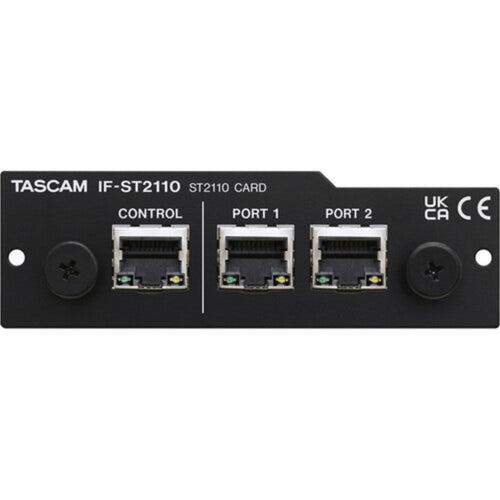

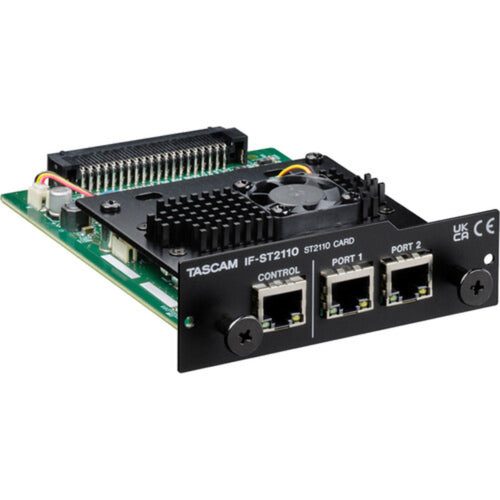

Tascam SMPTE 2110 Interface Card for Sonicview

The Tascam IF-ST2110 is an optional interface card designed exclusively for the Sonicview 24XP and 16XP digital mixing consoles. Tailored for demanding broadcast environments-including IP studio systems, remote production, and OB vehicles-the IF-ST2110 supports up to 64-in/64-out channels at 48 kHz (or 32-in/32-out at 96 kHz), delivering pristine audio at 16-, 24-, or 32-bit (integer) resolutions. It fully complies with SMPTE ST 2110-30/31 and AES67 audio standards, ensuring seamless interoperability with other professional IP-based audio systems.

For mission-critical redundancy, the card meets SMPTE ST 2022-7 standards and supports NMOS IS-04/05 for device discovery and control. With two media ports and one dedicated control port, the IF-ST2110 offers flexible connection options and stable network integration. A built-in WebUI app provides intuitive control and management, including point-to-point connection capabilities, making configuration and monitoring straightforward even in complex environments.

Key Features:

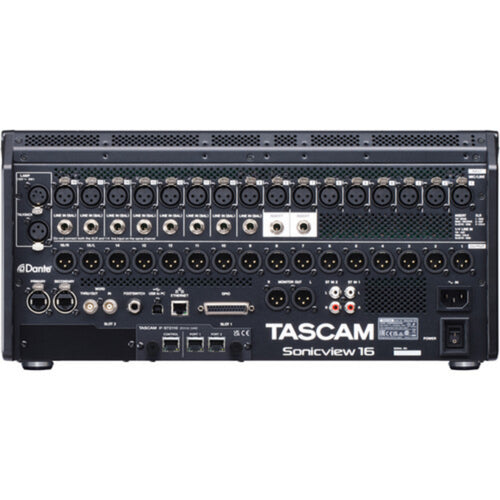

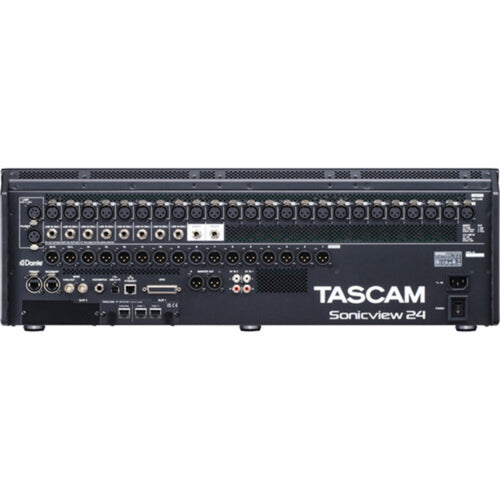

Designed for Sonicview 24XP and 16XP

64-In and 64-Out at 48 kHz

32-In and 32-Out at 96 kHz

Compliant with SMPTE ST 2110-30/31 and AES67

Supports 16, 24 and 32-Bit Depth

Compatible with SMPTE ST 2022-7

Supports NMOS IS-04/05 Protocols

Equipped with Dual RJ45 Media Ports

What's in the Box:

Tascam SMPTE 2110 Interface Card for Sonicview
