Pilotcine AtomCUBE ARX7D

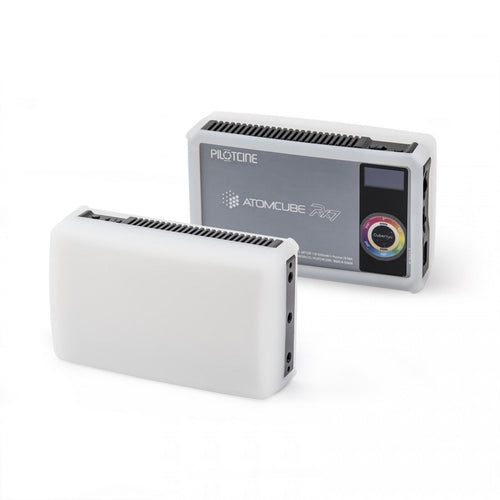

Pilotcine AtomCUBE ARX7D is a multi-functional 18W colour-changing lamp with RGB control function. All luminaires are CNC machined with aircraft-grade aluminium with heat-dissipation fin shapes.

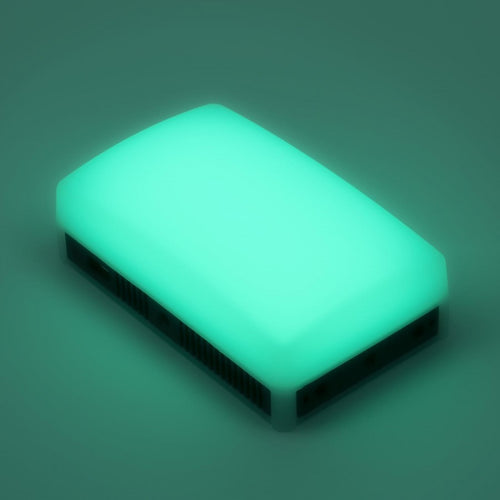

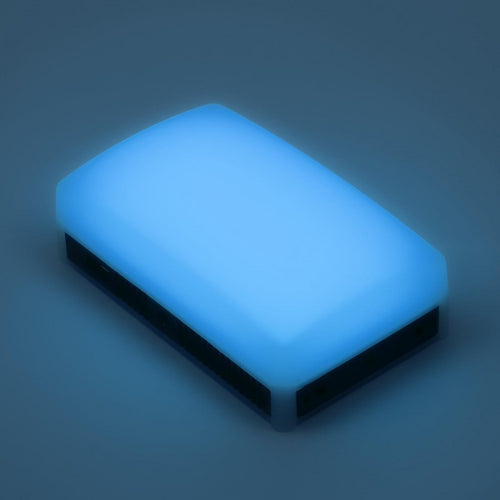

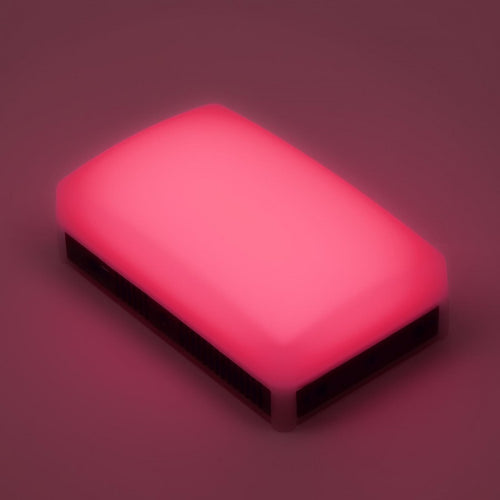

The RX7D is suitable to be installed on your camera, about 5.4 x 3.3 inches, easy to carry in a handbag or your pocket. Its bi-Colour/RGB combination lighting components help you explore creativity. Variable brightness 2500 to 8500K kelvin temperature range with neutral colour adjustment with 0 to 100% dimming. In RGB mode, the light allows selecting colours in the entire colour range from 0 to 360°, you can control the saturation and brightness, and in RGBDT mode, you can independently adjust five colours, any colour you want.

In the colour temperature mode, the dimming of the light ranges from 0 to 100%; RX7’s 196 LEDs reach 2100 lumens@0.5m, and in the colour temperature mode, it has a high CRI of 95 and a high TLCI 99, which can achieve excellent accuracy of colour rendering.

The RX7 has 15 scene modes for quick access to different effects, while the Custom FX mode provides six groups that’s customised to create unique outputs and effects. The free CUBERSYNC app for iOS and Android includes control of lighting settings and functions, which allows you to control one or more lights individually or in groups. This lamp has a new generation of Mesh technology, allowing up to 65535 lamps to extend the Bluetooth range. RX7’s OTA function provides fast and easy firmware update through Cubersync to maintain the latest and best functional experience.

he new MESHSYNC feature allows each device operates as a master and directly sync with multiple other device or group without application program. When using a 100% brightness lamp, the built-in battery can last for more than 2.5 hours, and it takes about two hours to fully charge the battery. The fixture has 4 1/4"-20 threaded mounting holes and an integrated cold shoe. The built-in OLED display shows you the remaining battery power, mode and dimming information. PD3.0 is provided through the USB Type-C port. Fast charging mode charges the internal battery. It also has a TYPE A output port to provide power to external devices.

RX7 is also the first pocket LED lamp that is compatible with the DMX512 standard. Through the exclusive DMX cable, the RX7D can be added to the DMX connection network. You can control multiple RX7 through DMX console wirelessly. In addition, any RX7 can be set up as DMX MASTER role and connects multiple groups of lights in the MESH wireless network to achieve an incredible and convenient lighting control synergy.
