Support a mix of multiple video formats using the Blackmagic Videohub 20x20 12G. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20x20 12G centralises all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.

Key features

• Zero-Latency Routing Switcher

• 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs

• Supports Up to DCI 4K60 Video

• Combines SD, HD, UHD 4K & DCI 4K Video

• Push-Button, Knob & Ethernet Control

• 2.2" Front Panel LCD Status Display

• SDI Reclocking, Compact 1RU Size

• Includes Videohub Mac/Windows Software

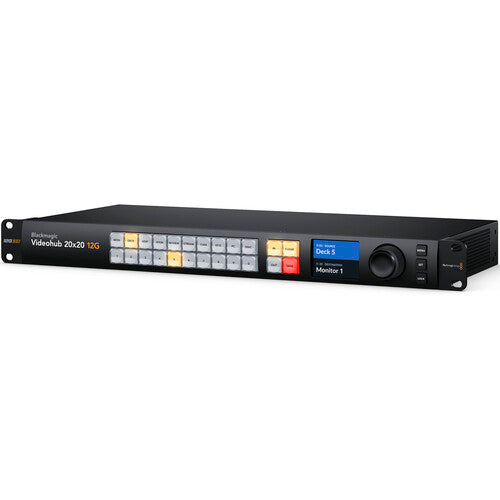

Front Panel Controls

• A sleek front panel offers multiple control options.

• Buttons include assignable shortcuts, and In, Out, Clear and Take buttons.

• The machined metal spin knob provides precise control using an electronic clutch.

Built-In LCD

• View your live input before routing the signal on the built-in 2.2" LCD screen.

• Bottom labels enable you to scroll through your sources in alphabetical order.

• Eliminates the need to add an external SDI monitor to your setup.

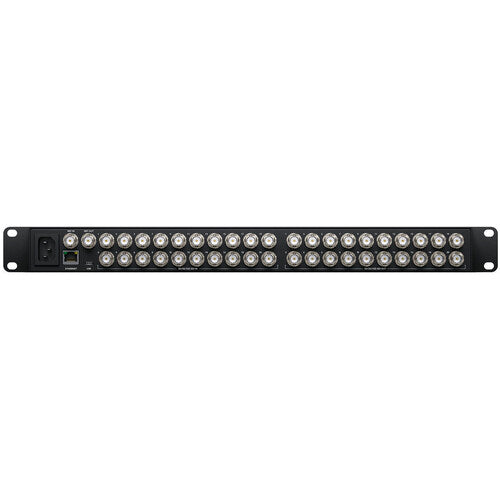

12G-SDI Multi-Rate Connections

• Multi-rate 12G-SDI connections enable you to route up to 20 different video standards at the same time.

• Supports up to DCI 4K60 video resolutions.

• Provides 4:2:2 8 or 10-bit colour routing in any standard.

• Works with 4:4:4 12-bit SDI up to DCI 4K30 for features films.

• Can be used with optional hardware panels for easier control when components are spaced out in large facilities.

• Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.

• Customised support is available in:

• English, Chinese, Japanese, Korean

• Spanish, German, French, Russian

• Italian, Portuguese, Turkish, Polish, Ukrainian

What's in the Box

• Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router

• Router Control Software

• Internal Software Updater Application
