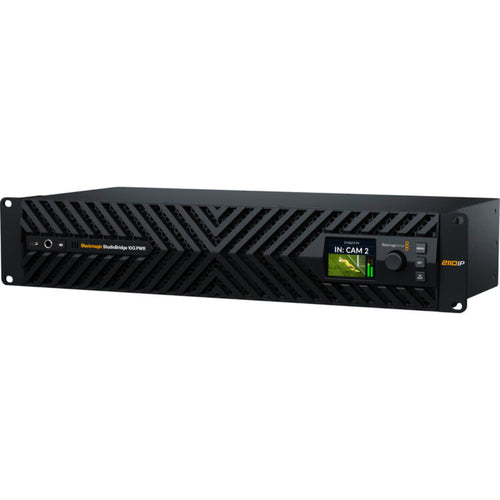

Blackmagic Design StudioBridge 10G PWR

The Blackmagic Design StudioBridge 10G PWR is a 2 RU IP video bridge designed to integrate multiple 10G Ethernet streams into high-bandwidth, redundant 100G broadcast infrastructures. Supporting up to eight channels of SMPTE 2110 video at resolutions up to 4K60, the unit converts 10GbE IP video streams into dual 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy for uninterrupted signal delivery. Each input supports automatic format detection across HD and Ultra HD standards, along with 16 channels of embedded audio per stream, ensuring compatibility with modern IP-based production workflows.

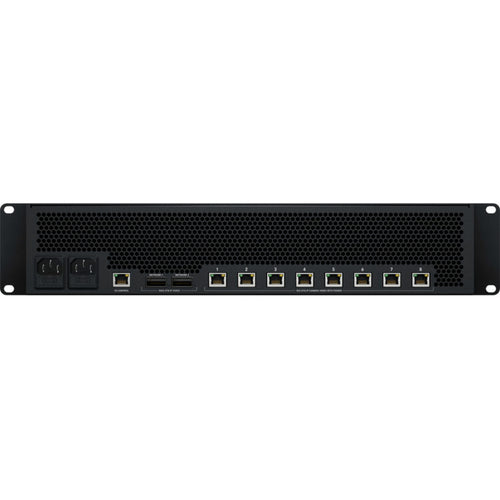

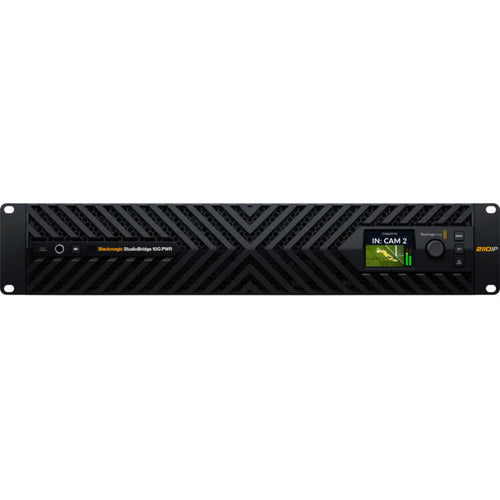

Engineered for deployment in live production and broadcast environments, each of the eight 10GbE RJ45 inputs provides up to 90W of PoE++ power, enabling direct connection and powering of cameras, converters, and other downstream devices over a single cable. A front-panel 2.2" LCD with integrated control knob and buttons allows real-time monitoring of video, audio, and system status, and a built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.

key Features:

Convert 8 Channels of 4K60 10-Bit Video

8 x 10GbE Video Inputs with 90W PoE++

Dual Redundant 100GbE Video Outputs

SMPTE 2110 IP Video Compliance

2.2" LCD Monitor & Control Knob/Buttons

External Control via RJ45 & USB-C

16 Channels of Embedded Audio per Input

2 RU Form Factor

Dual Redundant AC Power Inputs

Built-In Headphone Jack & Speaker
