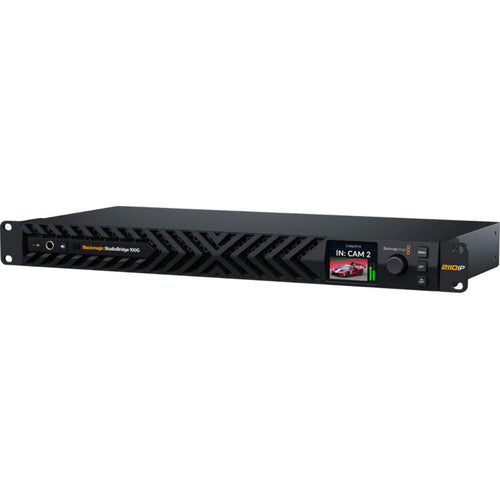

Blackmagic Design StudioBridge 100G

The Blackmagic Design StudioBridge 100G is a 1 RU IP video bridge designed to integrate one to two high-bandwidth camera streams into redundant 100G broadcast infrastructures. Supporting up to two channels of SMPTE 2110 video at resolutions up to 4K60, the unit converts one 100GbE IP video stream or two IP video streams of less than 100Gb/s total bandwidth into dual 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy for uninterrupted signal delivery. Each input supports automatic format detection across HD and Ultra HD standards, along with 16 channels of embedded audio per stream, ensuring compatibility with modern IP-based production workflows.

Engineered for deployment in live production and broadcast environments, the StudioBridge 100G sports two 10G RJ45 ports and two 10G SFP optical fiber interfaces for additional accessory connection. A front-panel 2.2" LCD with integrated control knob and buttons allows real-time monitoring of video, audio, and system status, while built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.

key Features:

Bridge 1 or 2 Channels of 4K60 Video

2 x 100GbE Camera Feed Inputs

Dual Redundant 100GbE Video Outputs

SMPTE 2110 IP Video Compliance

2.2" LCD Monitor & Control Knob/Buttons

2 x RJ45 & 2 x SFP Accessory Ports

External Control via 1GbE RJ45 Port

16 Channels of Embedded Audio per Stream

1 RU Form Factor

Dual Redundant AC Power Inputs

What's in the Box:

Blackmagic Design StudioBridge 100G
