SKU: GC26-FXR016

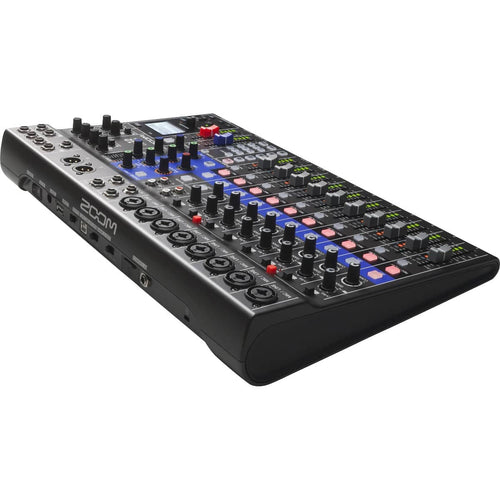

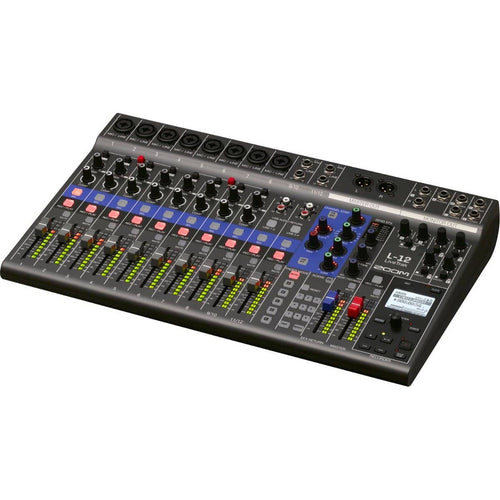

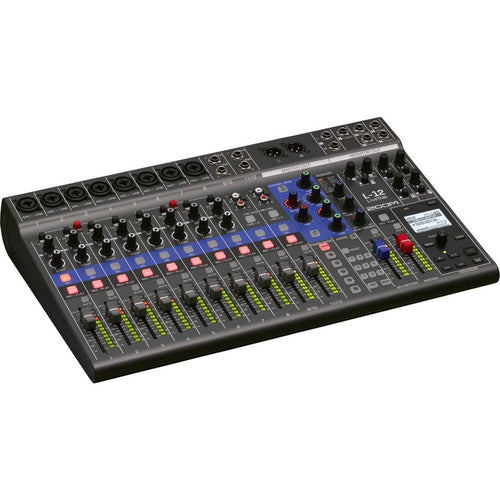

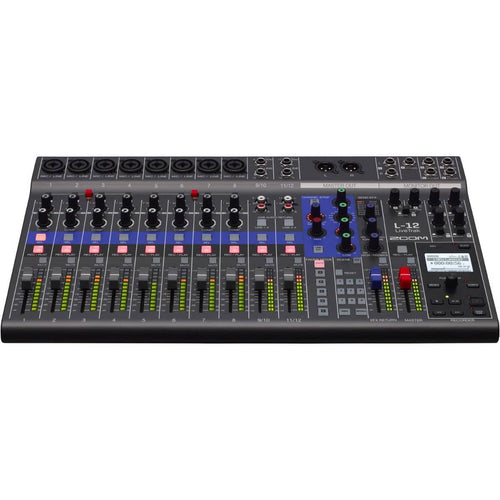

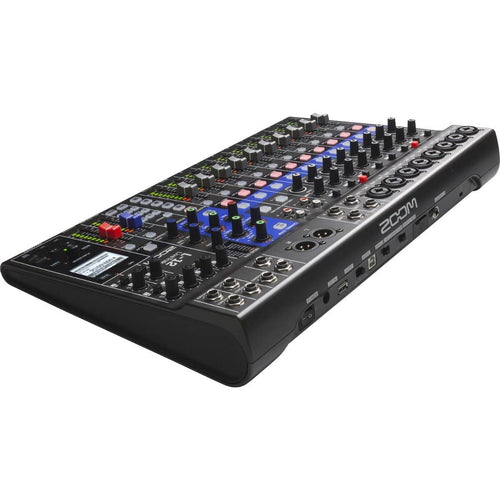

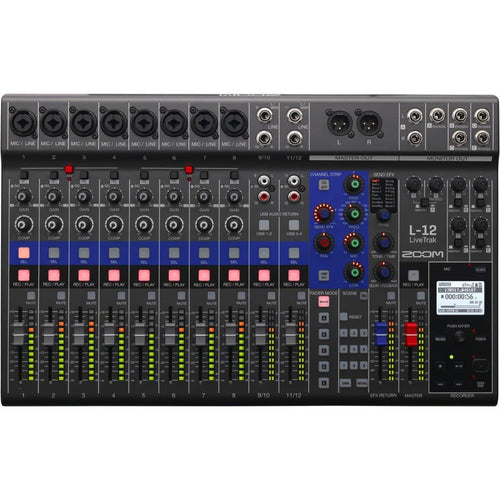

Zoom LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder

The highly flexible Zoom LiveTrak L-12 is a 12-channel digital mixer and multitrack recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The compact mixer features 8 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and a send FX for sending signal to the 16 built-in high-quality effects processor with a dedicated EFX Return channel.

The main output utilizes balanced XLR outputs, while a stereo monitor send is available via two 1/4" outputs. Additionally, the Zoom LiveTrack L-12 offers five headphone outputs, each with the ability to set up customized mixes. Simply connect your headphones and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.

The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 14 tracks at resolutions up to 24-bit / 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-12 can also function as a 14-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrack L-12 ships with a power cord and a USB cable.

  • 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4" connectivity
  • 14-track simultaneous recording, 12-track playback
  • 14-in/4-out USB audio interface connectivity
  • 5 powered headphone outputs, each with a customizable and savable mix
  • Add backing/click tracks from your computer to your live mix and recording
  • RCA and TRS line inputs
  • 48V phantom power (channels 1-4 and 5-8)
  • Hi-Z connectivity (channels 1 and 2)
  • 26 dB pad (channels 3-8)
  • Built-in compression control (channels 1-8)
  • 12-Segment Digital Level Meters: -48 to 0 dB
  • Master mute button
  • Low-cut control
  • Stereo panning
  • Master and monitor outputs (A-E)
  • Scene saving function, up to 9 scenes saved at a time
  • 16 built-in delay and reverb effects with adjustable parameters
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • SD card input
  • Built-in metronome
  • Automatic recording starting/stopping capability
  • Project protection
  • Import/export projects with USB 2.0 host port
  • Latency adjustment for A-to-D conversion
  • Compatible functions for optional Zoom FS01 footswitch

Regular price $962.94
Sale price $962.94 Regular price $1,179.00
Pay with
Pay with

Request a Price Match

Fill out the price match form below, and we will be in touch shortly.

$962.94

Product Overview

The highly flexible Zoom LiveTrak L-12 is a 12-channel digital mixer and multitrack recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The compact mixer features 8 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and a send FX for sending signal to the 16 built-in high-quality effects processor with a dedicated EFX Return channel.
