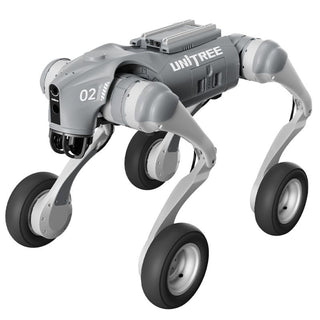

UniTree Go2-w Remote Control with Screen (Dual Camera + Dual Light Gimbal)

The Unitree Go2Went-U5 is an advanced mobile robot specifically designed for inspection and surveillance tasks. Equipped with a remote control, dual camera, and dual-light PTZ for high-precision stabilisation, it offers excellent performance and reliability. With dual communication systems (5,8G telemetry and 4G backup), the Go2Went-U5 enables real-time video transmission and precise temperature measurement thanks to its high-resolution thermal imaging sensor. Ideal for complex missions that require the highest precision and versatility.

The Unitree Go2Went-U5 is a highly developed mobile robot that was specially designed for demanding inspection and monitoring tasks. With the latest technology, high precision and reliability, it is the optimal solution for a wide range of applications in industry.

With a remote control that has an integrated screen and a dual camera, the Go2Went-U5 high-resolution 1080P HD images and offers a 120° wide-angle lens. Four powerful LEDs guarantee excellent illumination, even in dark environments, and support precise workflows.

Reliable Communication Connections

For a safe and stable operating environment, the Unitree Go2Went-U5 two independent communication systems:

primary connection: 5,8G telemetry for digital signal transmission, ensuring reliable communication.

Backup connection: 4G network that ensures continuous connection even in difficult conditions.

Real-time Video Transmission And Network Connection

The robot supports the transmission of 1080P video signals in real time, with a minimum latency of only 180ms. In addition, video streaming inputs can be received via standard network connections and dual-channel 1080P HD video signals can be transmitted.

Advanced Image Processing System

The modern image processing system of the Go2Went-U5 includes a dual camera with 1080P resolution and a 120° wide-angle lens. Four powerful LED lights ensure optimal illumination, enabling precise image capture even in dark environments.

Precise Three-axis Stabilisation Through Light Ptz

The Unitree Go2Went-U5 is equipped with a dual-light PTZ (Pan-Tilt-Zoom) system that provides precise three-axis stabilisation. The gimbal parameters include:

Angle jitter: ±0,01°

Controllable tilt rotation: -90° to +25°

Controllable horizontal rotation: -270° to +270°

Cross roller rotation: -45° to +45°

High-resolution thermal imaging sensor

For detailed temperature measurements, the robot has a high-resolution thermal imaging sensor with the following specifications:

Resolution: 640x512

Wavelength range: 8-14 µm

Temperature measuring range: High gain: -20°C to +150°C, Low gain: 50°C to +550°C

Temperature measurement accuracy: -20°C to +150°C (±2°C), 50°C to +550°C (±5°C)

control and operation

The operation of Unitree Go2Went-U5 is done via an intuitive app that is linked to the remote control. Note that the robot does not include a depth camera and cannot be upgraded with an optional servo robot arm or radar, which makes it particularly suitable for specialised tasks in the field of inspection and monitoring.

Remote Control

Integrated screen with dual camera

Resolution: 1080P HD

Wide-angle lens: 120°

Four high-performance LEDs for optimal illumination

Communication System

Main connection: 5,8G telemetry for digital signal transmission

Backup connection: 4G network compatibility

Video transmission

Resolution: 1080P High Definition

Latency: up to 180ms

Support for dual-channel 1080P video signals

Support for video streaming over standard network connections

Dual-Light PTZ

High-precision three-axis stabilisation

Gimbal parameters: angle shake ±0,01°

Controllable tilt rotation: -90° to +25°

Controllable horizontal rotation: -270° to +270°

Cross roller rotation: -45° to +45°

Thermal Imaging Sensor

Resolution: 640x512

Wavelength range: 8-14 µm

Temperature Measuring Range

High gain: -20°C to +150°C

Low gain: 50°C to +550°C

Temperature Measurement Accuracy

-20°C to +150°C (±2°C)

50°C to +550°C (±5°C)

Key Features:

Advanced Mobile Robot for Inspections

Remote Control with Integrated Screen

Dual Camera with 1080P HD Resolution

120° Wide-angle Lens for Broader View

Four High-performance LED Lights

Real-time Video Transmission at 1080P

Low Latency up to 180 ms

Dual Communication via 5.8G and 4G

Dual-light PTZ with 3-axis Stabilisation
