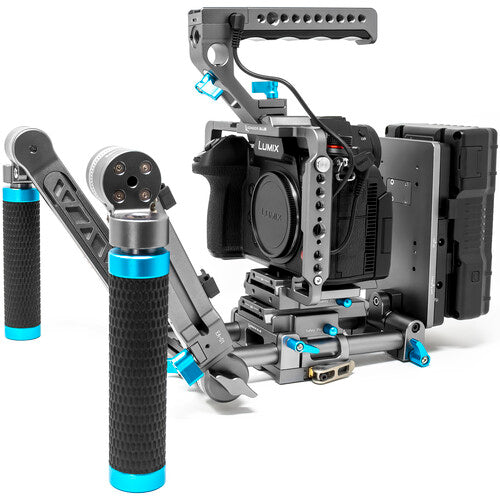

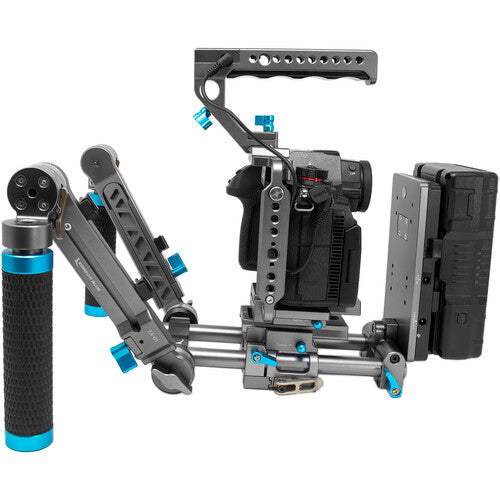

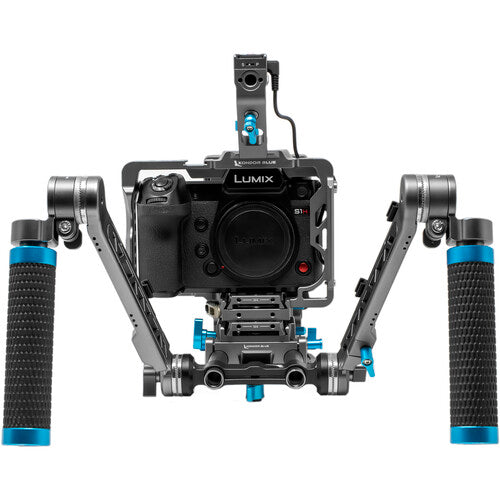

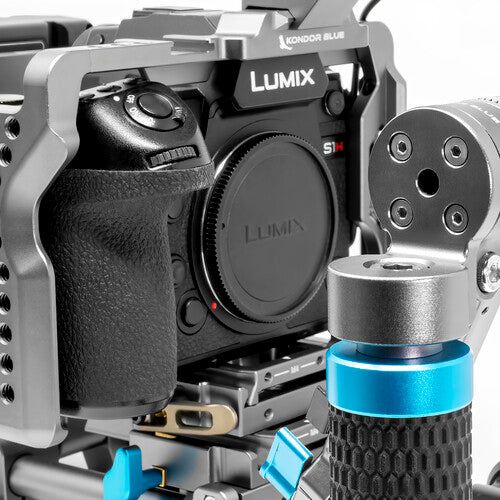

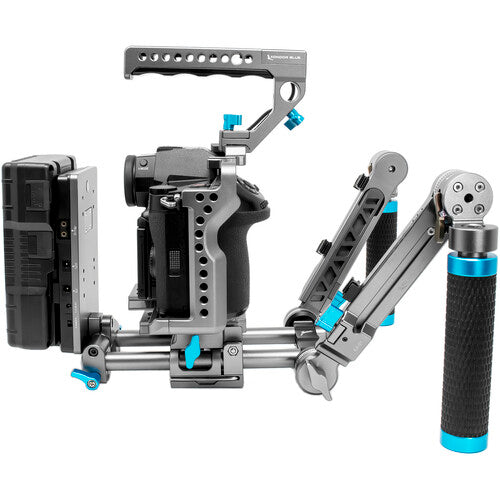

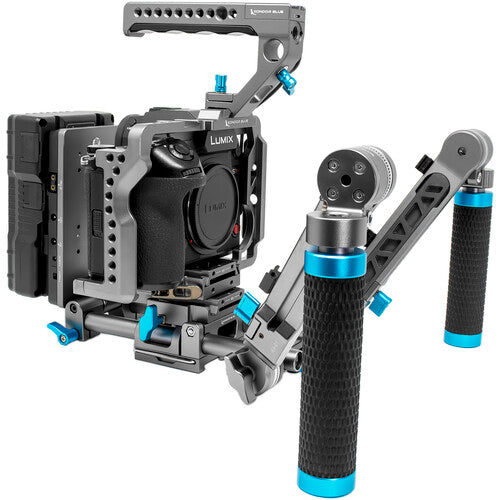

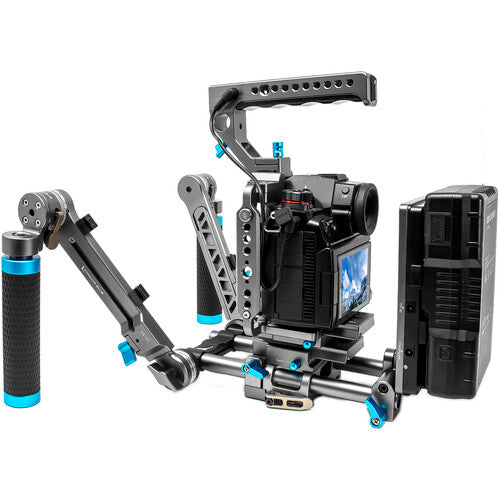

Kondor Blue Panasonic Lumix S1H Ultimate Rig (S1/S1R/S1H)

The space gray Kondor Blue Ultimate Rig for Panasonic Lumix S1H/S1/S1R is a versatile shoulder rig featuring a baseplate, cage, shoulder pad, dummy battery, trigger top handle, and extension arms with handgrips. It also includes a V-mount battery plate and a 12" pair of 15mm rods. The ARRI-style baseplate offers 15mm LWS rod support and comes with a Manfrotto 501-compatible quick release plate.

Kondor Blue Camera Cage for Panasonic Lumix S1/S1R/S1H (Space Gray)

Incorporating a Manfrotto 501 camera plate system, this space gray Camera Cage Kondor Blue allows you to easily move your Panasonic Lumix DC-S1, S1R, or S1H camera between the cage and other gear, as well as simply remove the camera by quick release. The plate locks in place at the flip of a large, secure lever on the side, and it's fully released at the press of a blue push button. Rubber padding on the camera plate and the wall of the cage ensures safer camera attachment, while a variety of mount types all around let you attach accessories.

Mount Types

• A NATO rail and a shoe mount are provided on top
• The entire left side is also a NATO rail
• 1/4"-20 and 3/8"-16 threads, including 3/8"-16 anti-twist threads with ARRI locating pins, are provided in multiple places for accessories
• 1/4"-20 and 3/8"-16 tripod threads on the bottom

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Gray)

Although featuring a fairly universal design, the space gray Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Key Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Gray)

Add professional battery power to your rig with this space gray V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Kondor Blue PPSH 15mm Rods (Pair, Space Gray, 12")

Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These Space gray aluminum threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue DC Barrel to BLJ31 Dummy Battery Cable for Lumix S1/S1H/S1R

The DC Barrel to BLJ31 Dummy Battery Cable from Kondor Blue enables you to power your Panasonic Lumix S1, S1H, or S1R camera from a power source with a 1.35/3.5mm DC barrel output. This coiled cable stretches from 16 to 36", supports an input voltage range of 12 to 17V, and outputs a regulated 8V.

Camera Compatibility

Panasonic Lumix S1, S1H, and S1R cameras

Kondor Blue Aluminum Body Cap for Leica L Cameras (Black)

Protect your camera's mount and sensor with this Aluminum Body Cap for Leica L Cameras, in black, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.

Kondor Blue Shoulder Pad Air (Space Gray)

The space gray Kondor Blue Shoulder Pad Air is a versatile shoulder mount support pad stabilizer featuring an air-cushioned pad that allows you to accurately set air pressure using the included air pump. The unit offers twenty-two 1/4"-20 mounting threads for your accessories, giving you ample options for placement that can easily align with your particular rig setup.

The rotating NATO mount allows you to use the unit on your chest or for certain low-angle shots, and it can be adjusted using the appropriate tool built into the shoulder pad. Twelve ARRI mounts are also spread across the overall design of the unit for additional mounting options.

Pad

• Air-cushioned pad to perfectly set the air pressure
• Removable and washable
• Includes an air pump

Mounts

• 12 ARRI mounts for mounting on rail systems when used with the optional ARRI-style Pin to Rod Clamp (60mm spread)
• 22 1/4"-20 threads
• Mounts on the NATO rail for mounting on a dovetail or baseplate

NATO Rail

• Can be bolted in place in a horizontal or vertical orientation for added security
• An adjustment tool is built into the shoulder pad
• NATO rail for the fine-tuning location of the shoulder pad under crowded rig components
• Safety stops are available at each end of the NATO

Key Features

• For Panasonic Lumix DC-S1H/S1/S1R Camera
• Baseplate, Cage, NATO-Mount Top Handle
• Dual-Rosette Extension Arms & Handgrips
• V-Mount Battery Plate, 2 x 12" 15mm Rods
• Dummy Battery, Shoulder Pad Air
