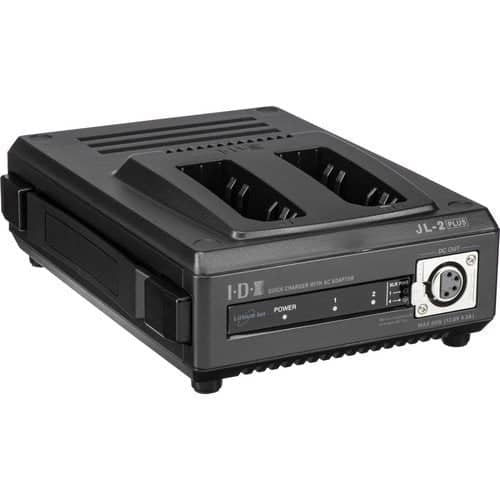

IDX 2-Channel Sequential NP-Style Charger with 60W Power Supply

The JL-2PLUS is a compact, two-channel, sequential multi-chemistry fast charger with a built-in 60W power supply. Up to two NP-Style batteries can be charged in approximately 3 hours. The primary use of this unit is as a charger, and you can charge batteries or use it as a power supply, but you cannot do both simultaneously. The charger includes a removable AC power cord.

Portability

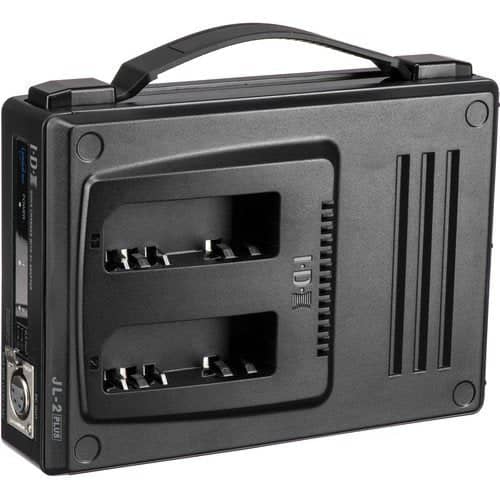

The JL-2PLUS offers a lightweight design (3.3 lbs) with a convenient built-in handle.

NP-Style Mount

The JL-2PLUS is designed to directly charge NP-Style batteries. Since the NP-Style mount is one of the most common battery mounts on broadcast and professional camcorders, IDX has adapted the design to help fit that need.

Condition Indicator

An LED condition indicator is offering a quick glance at each battery's charge status.

Red (charging)

Green (complete/trickle)

Orange (battery fault)

Durable Construction

An all-metal case construction ensures that the JL-2PLUS will hold up under the harsh rigours of location shooting.

Multi-Chemistry Design

Any combination of battery chemistries can be automatically charged with the JL-2PLUS.

*Any one of the following battery chemistries can be used:

Li-Ion (Lithium Ion)

NiCd (Nickel Cadmium)

NiMH (Nickel Metal Hydride)

*NP-Style only

Memory Effect

This is a simple charger that will charge either Ni-Cad or Li-ion batteries, but it does not contain charging protocols to drain the batteries before charging. Ni-Cad batteries should be drained to the proper voltage before charging to avoid the memory effect.

Power Supply

A standard 4-Pin Canon type connector is available on the front panel to provide 60 watts of DC power via the built-in power supply.

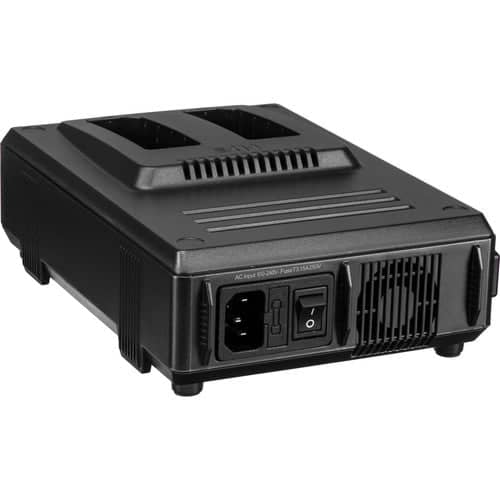

Worldwide AC Power

As with all IDX chargers, the JL-2PLUS's power switch is recessed to prevent an accidental loss of power. A worldwide, auto-sensing AC power (AC 100-240V) operation is standard.
