Hollyland Pyro S + 7" Monitor Video Transmission Monitoring Kit

Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor from Hollyland. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7" touchscreen display, dual L-series battery plate, wireless transmission up to 1300' away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.

The Pyro 7 features wireless broadcast technology that enables one transmitter to connect to up to four receivers with stable, line-of-sight signals. When Broadcast mode is activated, the transmitter can transmit signals to a maximum of four receivers, and when it's deactivated, the transmitter can transmit signals to up to two receivers and two mobile devices.

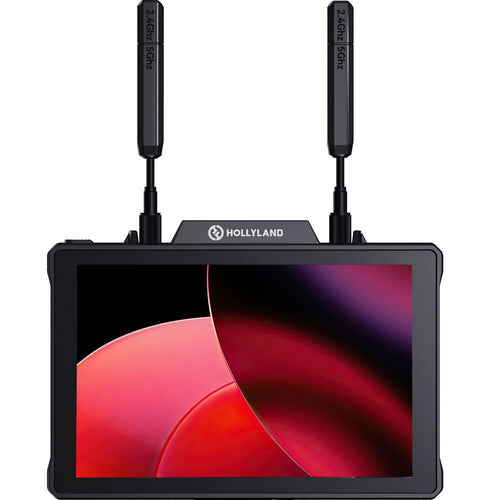

Large, Bright Monitor

The Pyro 7 features a 7" display with a brightness of 1200 cd/m², so it's clearly viewable whether you are in bright sunlight or dim environments. The screen brightness is adjustable for optimal performance.

Versatile I/O

The Pyro 7 can be switched to be a transmitter or receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, one HDMI loop output, and one SDI loop output. When in receiver mode, it features one SDI output, one HDMI output, and one SDI loop output.

Quick Source Switching

The transceiver enables seamless connection with all Pyro series units using a grouping preset. You can group multiple devices and instantly switch monitoring between two cameras by utilising two customisable buttons.

Long Transmission Range

Utilising 2.4 and 5 GHz dual-band technology, the Pyro 7 features a stable line-of-sight transmission range of up to 1300' with a minimal transmission latency of 60ms with no image degradation. There are two transmission modes to choose from: Smooth mode adjusts the transmission for the lowest latency for longer distances, and HD mode optimises the image with a stable bitrate up to 12 Mb/s, even up to 1300' away.

Auto Dual-Band Hopping (ADH)

With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies operating on both 2.4 and 5 GHz bands, the Pyro 7 can automatically choose the clearest channel for reliable and uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency, and frequency congestion. The omnidirectional high-gain antennas also ensure stable signals in all directions.

RTMP Streaming

The Pyro 7 features an SD card slot that supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card. You can also use an SD card to apply custom LUTs during video export. It features file organisation and supports a streamlined editing workflow. You can also import data from external devices and ingest on-set screenshots, overlaying them onto the current recording screen for scene restoration or replication purposes.

Custom Monitoring and Durable Design

The Pyro 7 features a custom shortcut key for dual-view monitoring and quick access to image tools such as waveform, recording and focus assist. Its case is constructed from aerospace-grade magnesium-aluminium alloy, providing a robust and rigid design that is 30% lighter with improved heat dissipation compared with aluminium-only models.

4K Wireless Video Transmission

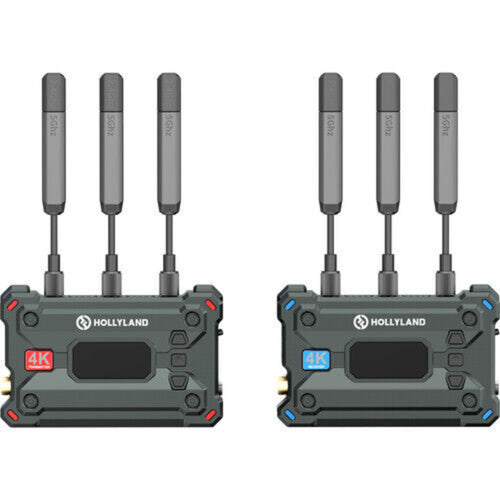

The Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System supports up to 4K30 transmission via HDMI and 1080p60 via SDI, with latency as low as 50ms and line-of-sight transmission up to 1300'. Broadcast mode allows one transmitter to connect with up to four receivers at distances of up to 650', while the receiver provides both HDMI and SDI outputs for flexible monitoring setups.

Flexible Connectivity and Smart Operation

Each Pyro S unit features HDMI, SDI and USB-C connectivity, with USB-C supporting power and plug-and-play UVC operation for computers without additional drivers or software. RTMP support enables wireless streaming to platforms such as Zoom, YouTube, Twitch and TikTok, while smart channel scanning helps select a suitable frequency and provides real-time frequency feedback. Preset grouping and pairing also simplify system setup.

Practical Accessories and Power Options

The Pyro S supports DC input, NP-F batteries and USB-C power from 5-12V, providing flexible powering options for different production setups. Accessories for the Pyro 7 include an adjustable shoulder strap with locking clasps, a foldable monitor hood for reducing glare and a lightweight aluminium handle that mounts to the side or bottom for added stability in horizontal or vertical operation.

Key Features:

Pyro 7 Transceiver and Recording Monitor

Pyro S 4K Transmitter and Receiver

SDI/HDMI Input and Output

Up to 400m Transmission Distance

Complete Pyro Ecosystem Integration

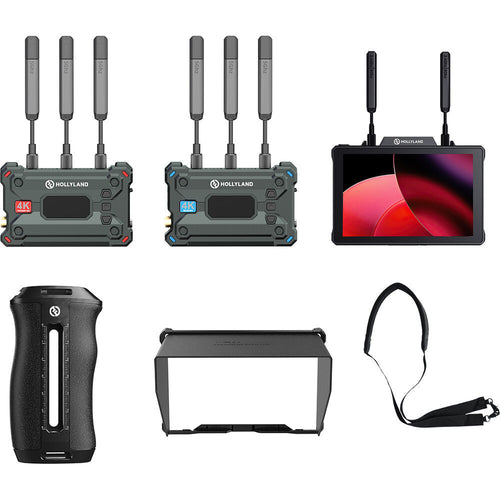

What's in the Box:

Hollyland Pyro S + 7" Monitor Video Transmission Monitoring Kit

Hollyland Pyro 7 Transceiver Monitor

Hollyland Pyro S Transmitter

Hollyland Pyro S Receiver

Paddle Antenna

Hollyland Monitor Shoulder Strap

Hollyland Sun Hood

Hollyland Side Handle

SD Card

USB-C Converter

D-Tap to Locking DC Power Cable

Hard Shell Carry Case
