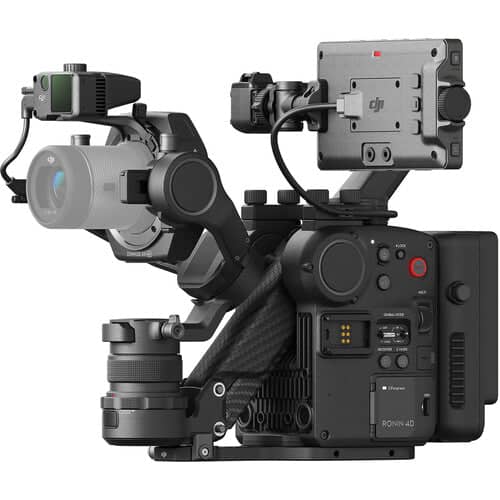

The DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit is a must-have for any filmmaker. This kit includes the top of the line camera body, with a stunning 6k resolution and integrated dual pixel autofocus capabilities. It also includes the ultra-precise Ronin 4D gimbal system (lens sold separately) which offers incredibly smooth stabilization in all four axes.

This allows you to capture beautiful footage without losing stability or having to worry about unwanted camera shakes. The included accessories allow you to customise your rig according to your specific needs, ensuring that you will have everything you need for professional quality videos. With its advanced features and intuitive design, the DJI Ronin 4D is an essential tool for any aspiring videographer!

Features

CineCore 3.0 Imaging Processing System

The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing

The Ronin 4D uses the CineCore 3.0 system to support internal recording of Apple ProRes Raw, ProRes 422 HQ, and H.264 video

Industry-standard ACES workflow support provide easy compatibility with other cinema cameras

Advanced 4-Axis Stabilisation

Selectable Z-axis stabilisation reduces unwanted vertical camera movement, especially during dollying moves

Z-axis stabilisation built into the camera, 3-axis stabilisation in the gimbal

Tilt stabilisation uses dual, symmetrical motors

Pan and X (roll) axes with additional stiffness buffering

Downward ToF (time of flight) sensor

Forward and downward-facing dual-vision sensors

Built-in IMU (inertial measurement unit) and barometer

New and improved stabilisation algorithm

ProRes Raw, 422 HQ, and H.264 Capture

Captures 6K raw at rates up to 60 fps in full-frame 2.39:1

Captures up to 4K raw at rates up to 120 fps in Super 35 2.39:1

Captures up to 4K raw at rates up to 96 fps in Super 35 17:9

Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1

Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1

Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full-frame

Dual Native ISO

800/5000 dual native ISO

EI 200 to 12800

14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

In-Camera ND Filters

Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions

Especially handy for outdoor shoots with changing cloud cover

Motorized filter system

Carry in "built" mode for easy company moves

LiDAR Focus Control

LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range

Excellent focusing performance even in low-light environments

Focus pulling can be viewed graphically, thanks to a built-in depth meter

The intuitive and highly accurate focusing system

Modular LiDAR focusing module attached to the front of the D4 rig

Autofocus Features

Maintains focus, even when motion blur is produced by fast-moving subjects

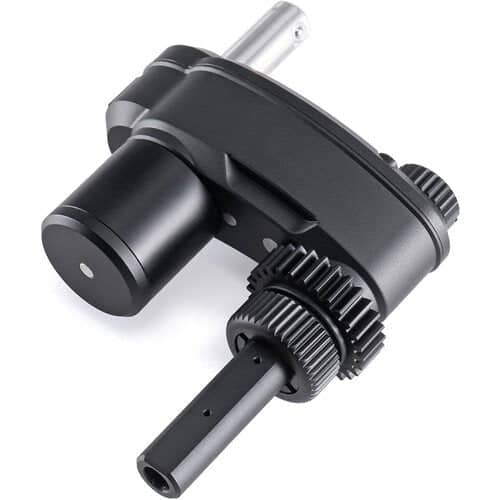

Separately available focus motor for use with manual lenses

Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

Automated Manual Focus

The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus

Operators can grab the focus wheel of the right handgrip at any time to manually focus

The handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes

ActiveTrack Pro

DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate

ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system

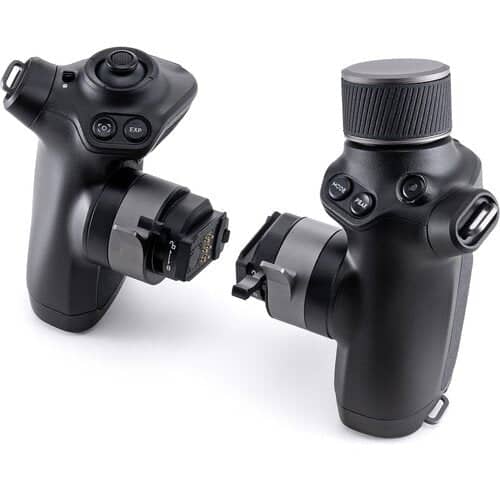

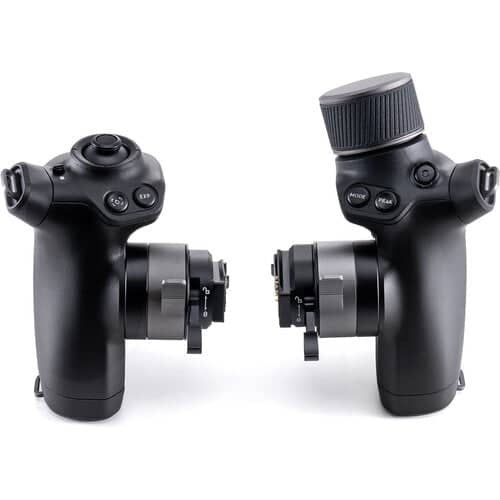

Dual Focus, Iris, and Control Grips

The right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)

Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode

Single User or Crew-Assisted Operation

Top-notch stabilization in a lightweight form

Ideal for both solo operators as well as assistant-accompanied shoots

Designed to counter footsteps from inexperienced gimbal shooters

Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted

Sport mode is available with the touch of a button, accommodating faster-paced action

Use in standard, underslung, jib, and crane setups

Media Storage Options

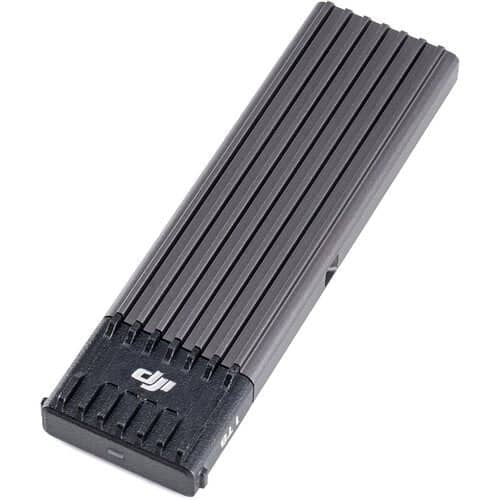

Requires a ProSSD 1TB drive (not included) to capture raw footage

USB Type-C port for external recording, no reader needed to offload footage

Integrated CFexpress Type-B card slot

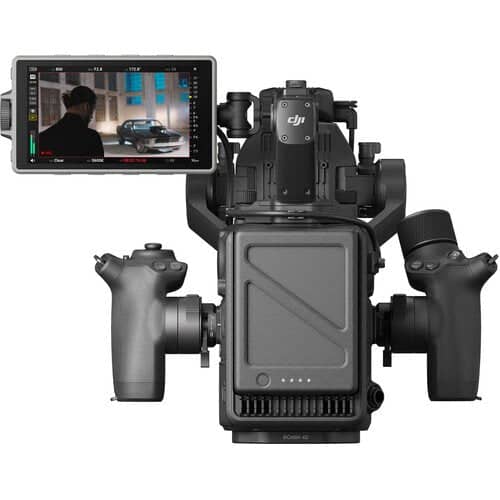

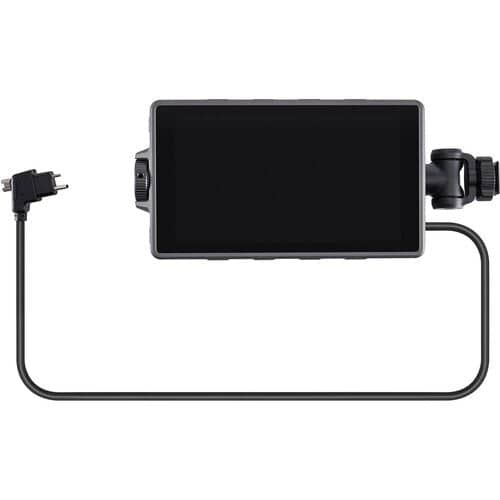

Built-In 5.5" Touchscreen Monitor

5.5" 1920 x 1080 monitor

1000 cd/m² display

Touchscreen control

Rotates for optimal viewing

Audio Recording

Integrated stereo microphones capture dual-channel 24-bit audio

Built-in 3.5mm audio input port and XLR port via expander plate

Power Options

Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2

Each battery provides up to 2.5 hours of capture time

Batteries charge fully in approximately 1.5 hours

Support auto-heating for cold weather use

AC adapter for uninterrupted shooting

What's In The Box

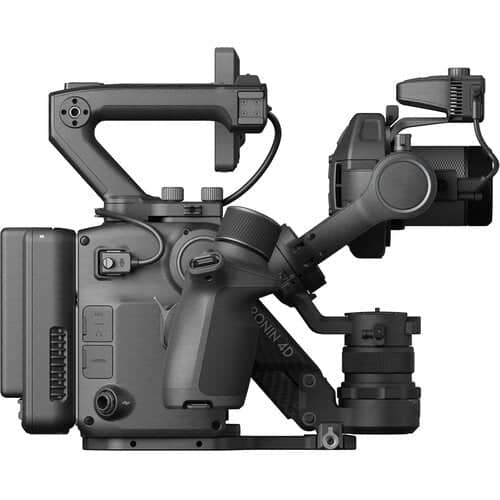

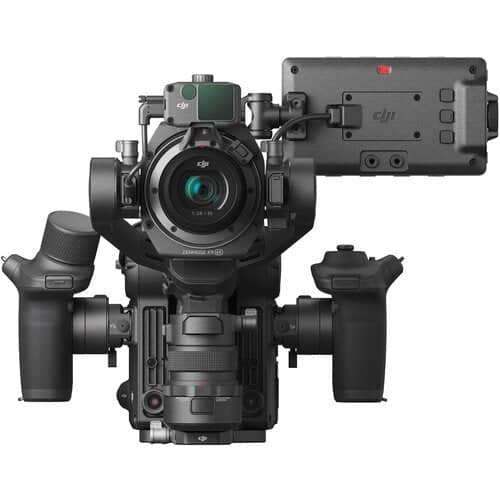

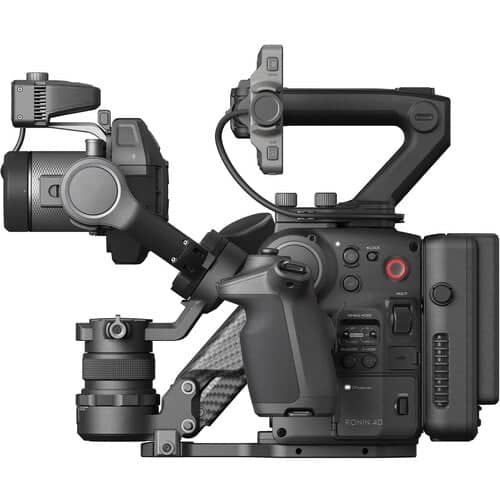

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

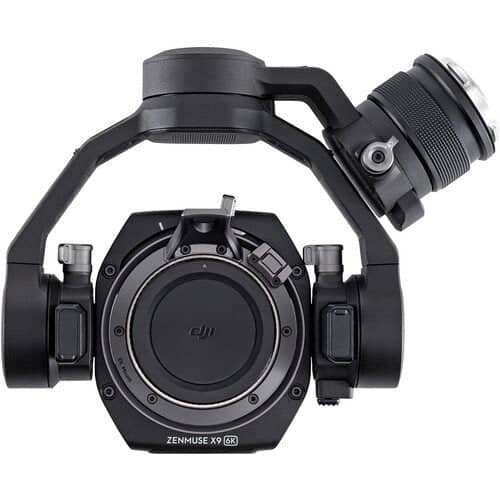

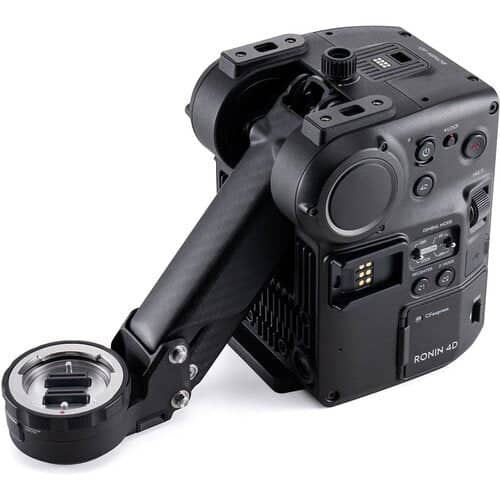

Zenmuse X9-6K Gimbal Camera

DL Mount

DL Mount Body Cap

DL Mount Lens Cap

X9 Gimbal Base Cap

Ronin 4D Gimbal Base Cap

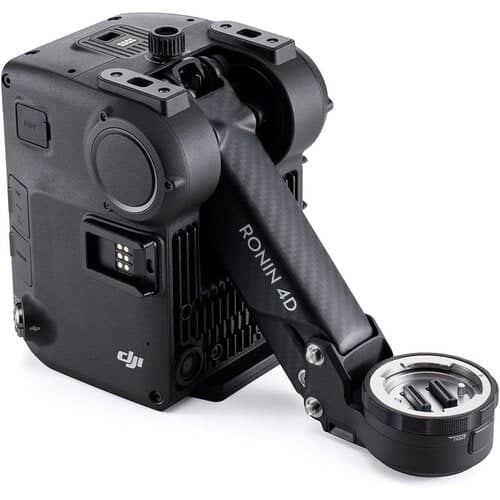

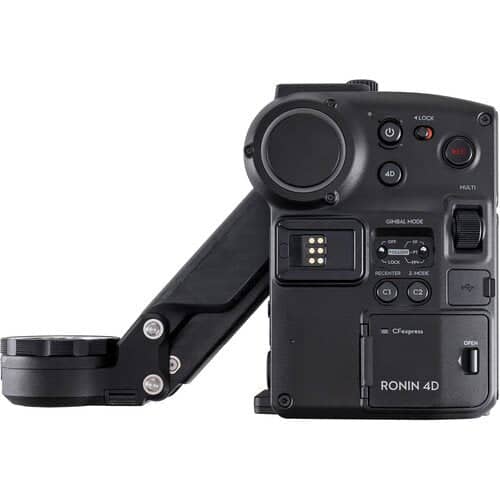

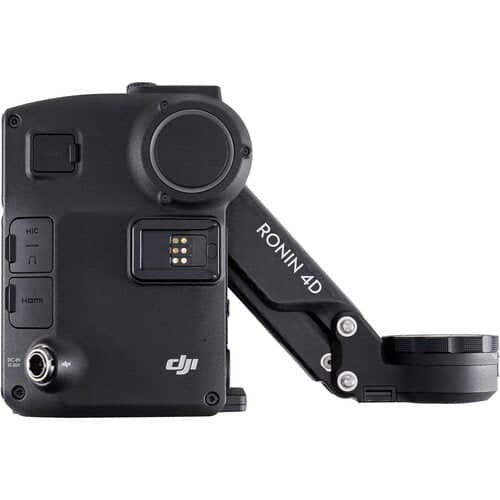

Main Body with Integrated 5.5" Monitor

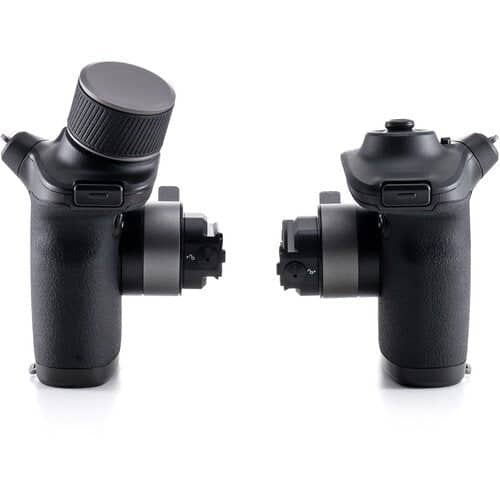

2 x Handgrip

Handgrip Extended Control Stick

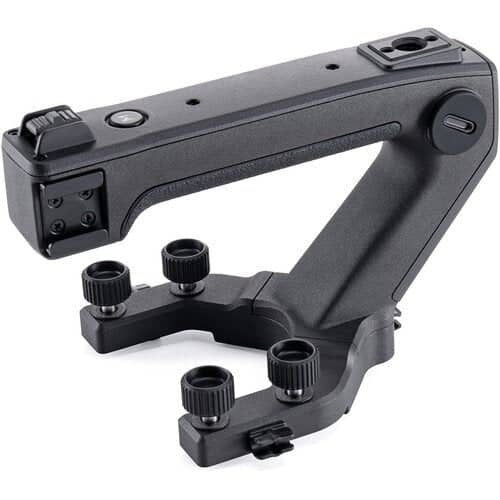

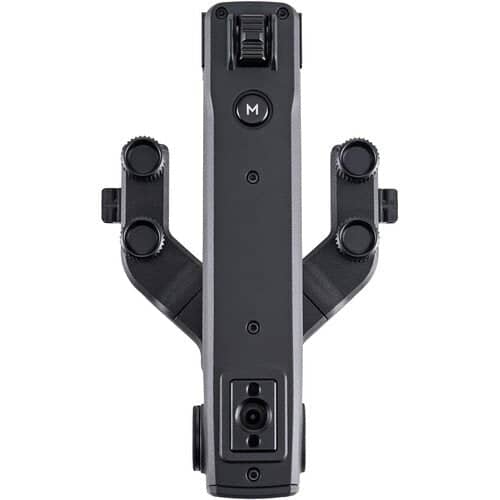

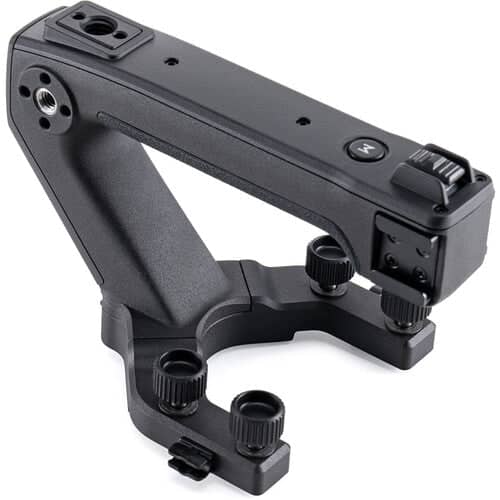

Top Handle

TB50 Battery Mount

TB50 Intelligent Battery

2 x Handgrip Strap

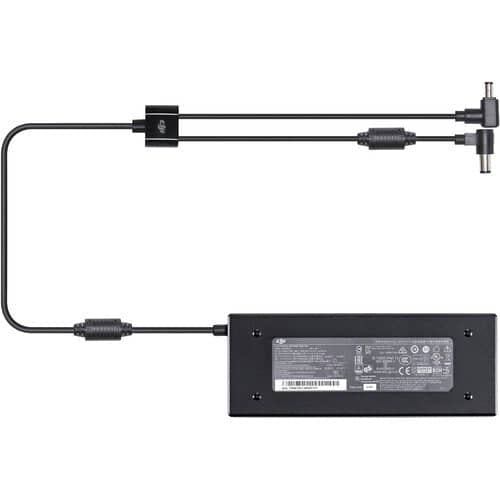

Power Adapter

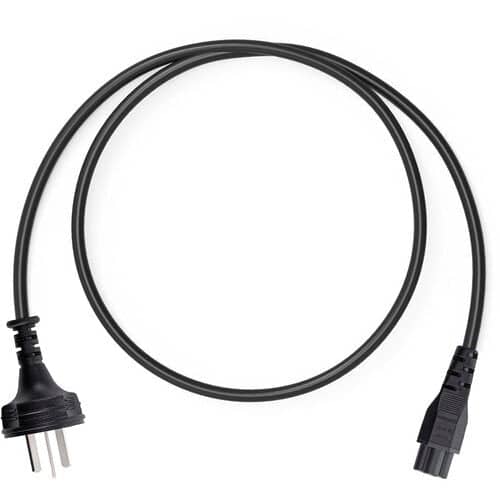

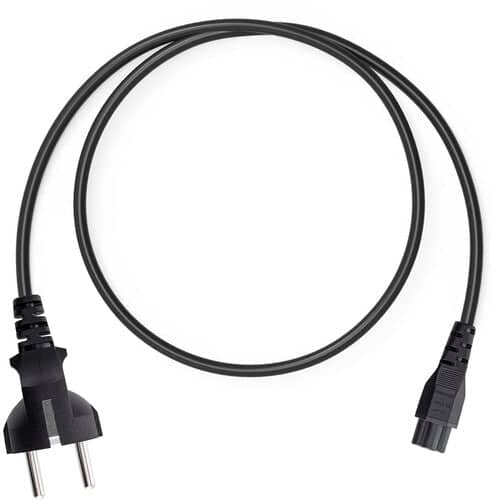

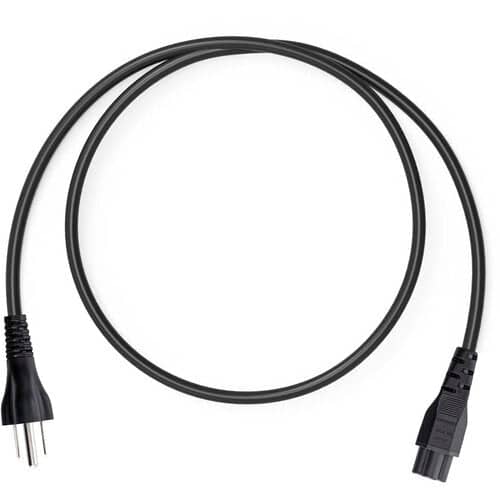

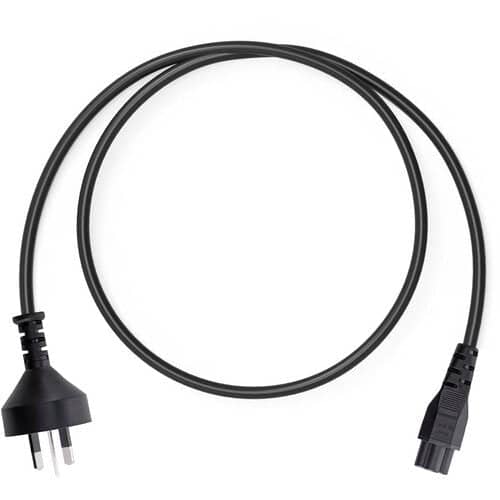

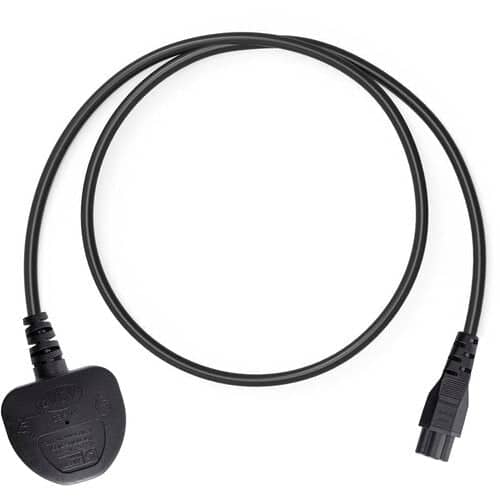

8 x AC Power Cable

TB50 Charging Adapter

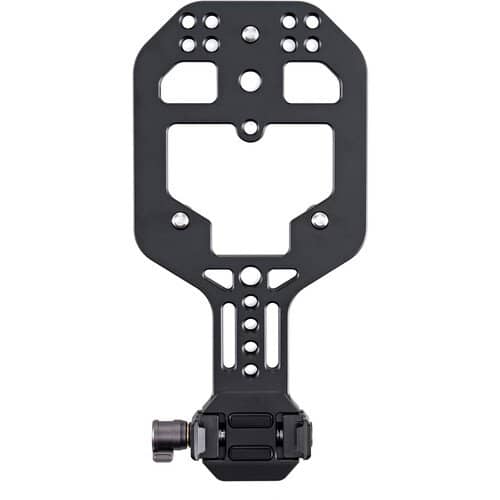

Baseplate

LiDAR Range Finder/Focus Motor Cable

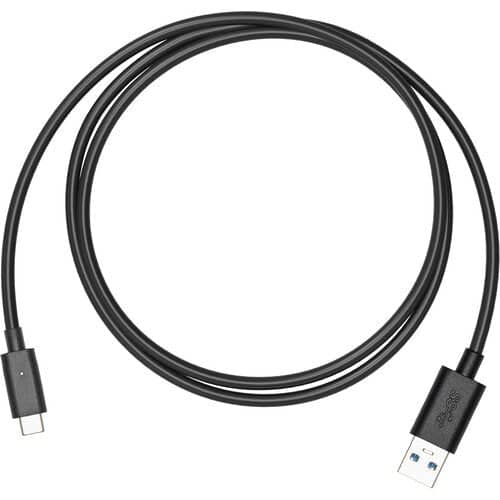

USB Type-A to Type-C Cable

Ronin 4D Carrying Case

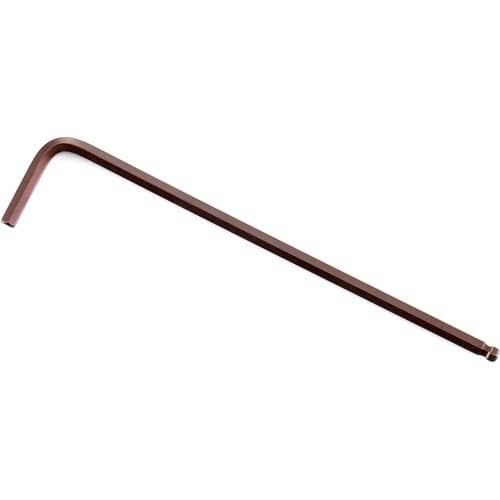

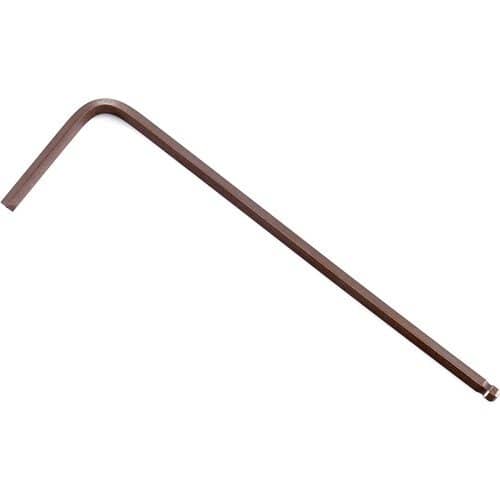

Ball-End Allen Key (3mm)

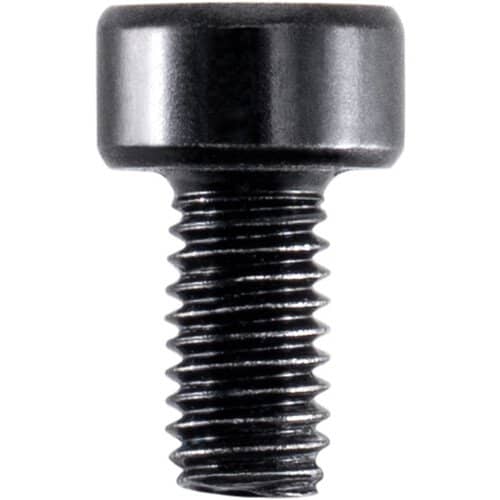

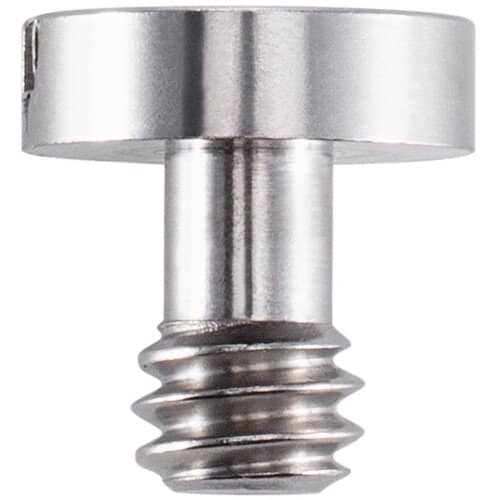

6 x 1/4"-20 Screw (10mm)

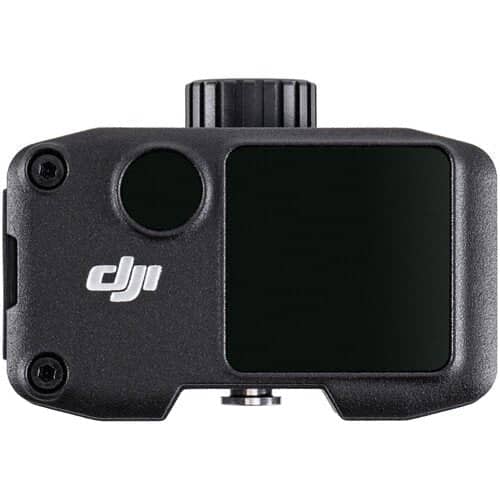

LiDAR Range Finder

LiDAR Range Finder Holder

X9 Counterweight (3.8 oz)

C-Shaped DL Mount Ring

2 x M2-3 Screw (3mm)

Ball-End Allen Key (1.5mm)
