Core SWX V Mount Bracket for Sony FX9

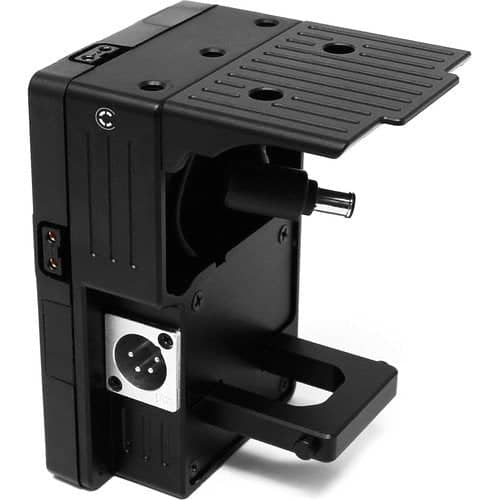

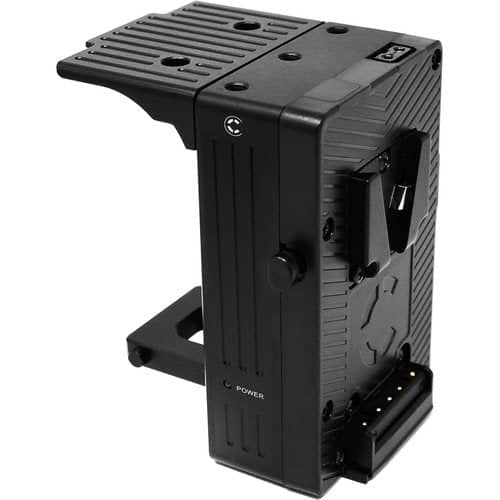

The V-mount Core SWX Battery Plate for Sony PXW-FX9 attaches directly to the rear of the camera and connects via a DC output cable. It also provides a 4-pin XLR input to allow for hot-swapping. Plug in a 4-pin XLR external power source and you can swap out your V-mount battery. The plate secures to the camera using screws provided on the back of the camera, under the removable cover plate on the rounded corner. At the same time, a protruding U-shaped component on the bottom of the unit inserts into the camera's battery slot.

The DC cable provides a 19.5V output that's compatible with the camera. An LED on the side of the plate provides a warning of low battery status. When the plate is not in use, the DC cable can be kept inside a dedicated compartment that's on the interior side of the plate.

There are also two D-Tap outputs for powering accessories. A USB port is also available for firmware updates. The plate is made of durable aluminium.

Features:

Attaches to the rear of the camera and connects via a 19.5 VDC output cable

4-pin XLR input for hot-swapping

Low battery warning LED

Two D-Tap outputs

Aluminum construction
