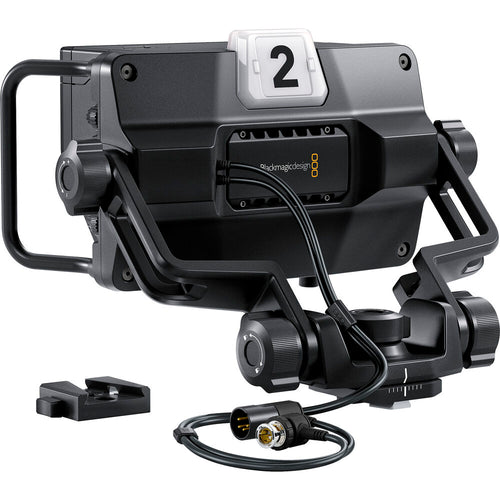

Blackmagic 7" URSA Studio Viewfinder G2

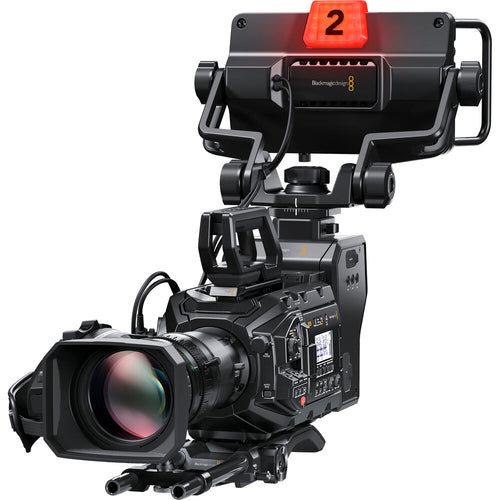

Add the Blackmagic Design 7" URSA Studio Viewfinder G2 to your URSA Studio G2 or URSA Mini camera to provide high-resolution monitoring. The 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD screen, and it features a detachable sun hood to prevent glare. Large side handles allow you to adjust the angle, and it mounts onto the top of your URSA Mini top handle using the bottom V-lock mount.

The viewfinder connects to the camera using a 3G-SDI BNC input, and it features 2000 cd/m² brightness, allowing you to view images clearly indoors or outdoors. Multiple dials and knobs allow you to navigate and adjust settings, and an LED light provides tally information. Its status display provides metadata from the camera, including frame guides, status, and peaking, and it also shows the fps, battery level, shutter, gain, and more. It is powered using the 4-pin XLR power input that can be used right from your URSA camera power output. It also features a USB Type-C input for setup and firmware updates.

Controls

Dial, knobs, and customisable function buttons for settings, shortcut features, and navigating menus.

Handles

Built-in grab handles for positioning the monitor independently from the camera.

Position Adjustment Options

Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan, and tilt adjustments.

Mounting Options

Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini top handle.

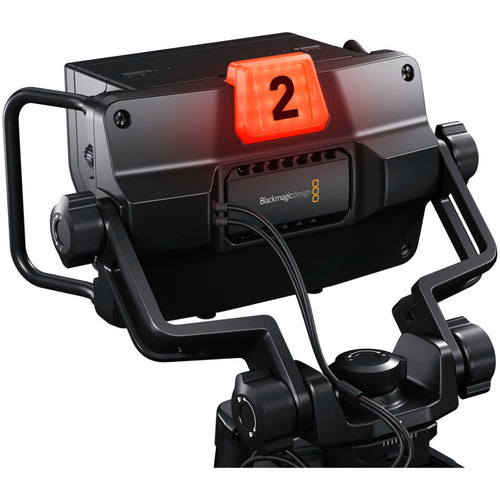

Tally

Large LED tally light with customisable Perspex camera numbers.

Metadata Support

Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.

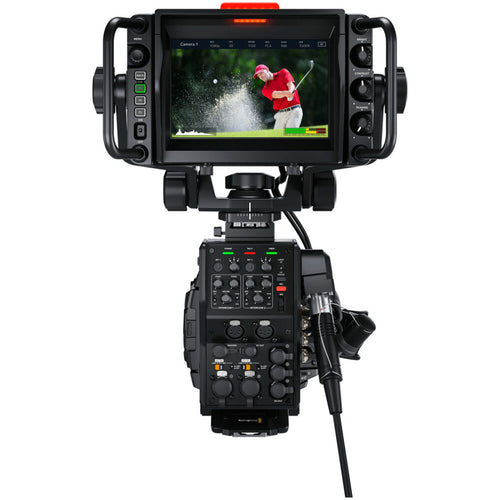

Screen Interface

On-screen metres and status information including camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.

Key Features:

Designed for URSA G2 and URSA Mini

7" 1920 x 1200 TFT LCD

3G-SDI Connection to Camera

2000 cd/m² High Brightness Display

4-Pin XLR Power Input

Integrated V-Lock Battery Mount

Rotary Dials and Custom Buttons

What's in the Box:

Blackmagic 7" URSA Studio Viewfinder G2

Sun Hood
