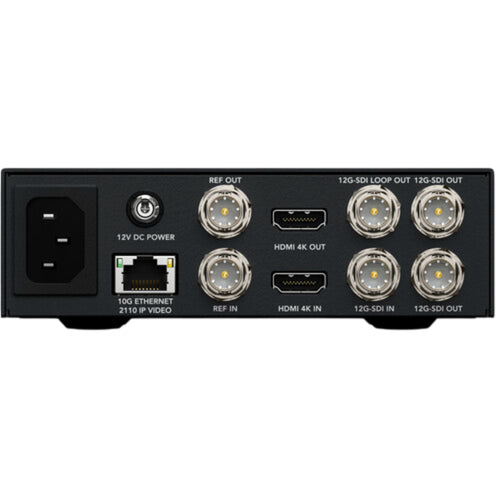

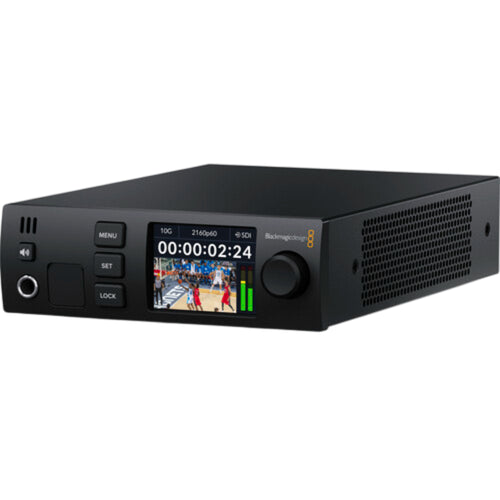

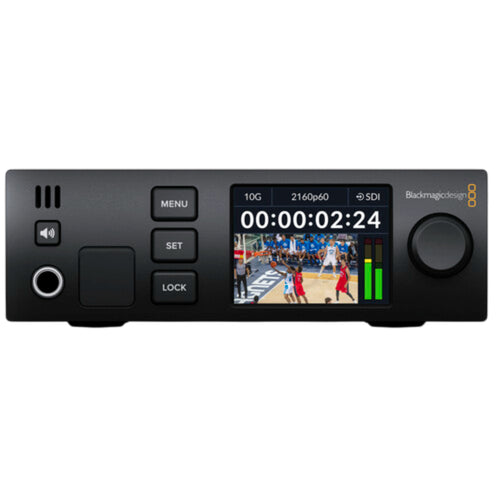

Blackmagic 2110 IP UpDownCross 12G

Convert any incoming video source to the video standard you are working with using the 2110 IP UHD 4K UpDownCross 12G Converter from Blackmagic Design. Equipped with a 10G Ethernet port for 2110 IP video support and with 12G-SDI input and loop output and HDMI 2.0 connectivity handling resolutions up to UHD 4K, the versatile rackmount device features front-panel controls, and it has a built-in audio monitoring speaker, as well as a headphone jack. Its sleek design takes up only one-third of a 1 RU space, and a USB-C port on the front panel works as an HD webcam port. Reliable performance is further augmented with the low-latency Blackmagic IP10 codec used by the unit.

The 12G-SDI connections re-sync to the common PTP clock, and sync can be output via the built-in BNC connector. The device can also take an incoming sync signal via its BNC reference input, making the unit an essential converter for any studio or live broadcast system. The converter has a low SDI jitter and uses high-quality multi-tap video filters, allowing users to employ longer cables while maintaining the integrity of the signal. Automatic audio delay ensures that audio is always perfectly in sync with video.

Key Features:

2110 IP/12G Up/Down/Cross Conversion

Rackmount Design, Front-Panel Controls

12G-SDI Input, 12G-SDI Loop Out

Re-Syncs SDI Inputs to Common PTP Clock

Low-Latency Blackmagic IP10 Codec

Built-In Audio Monitoring Speaker

BNC Reference Input & Output

What's in the Box:

Blackmagic 2110 IP UpDownCross 12G
