This speciality Wireless Microphone Mounting UNIVERSAL BP Backplate is a backplate for all Ikegami, Panasonic, Hitachi, and Thomson type camcorders. Required for mounting wireless receiver plates to factory supplied version Gold Mount on DVCPRO type cameras. Select wireless receiver mounting from options below. (Note NOT included, must be purchased seperatly)

ABWMK-KIT Universal wireless receiver mounting kit. Attach directly to the metal backplate of any Gold Mount to mount any type of wireless receiver. Adjustable to closely fit to camera with any size Anton/Bauer Gold Mount battery on the side or behind the battery.

WRB-185 Wireless Receiver box which will hold any wireless receiver similar to Lectrosonics style# CR175, CR185, CR187 and UCR190. Size: 4" x 3" x 1.25" (10.16 x 7.62 x 3.18cm)

WRB-200 Wireless Receiver box which will hold any wireless receiver similar to Lectrosonics style# UCR-195/195D/200/205/210/211/411, Size: 4" x 3.5" x 1.38" (10.16 x 8.89 x 3.48cm)

WRB-201 Wireless Receiver Box which will hold any wireless receiver similar to Lectrosonics style #UCR-201. Size (inside dimensions): 3.97" x 2.96" x 1.38" (10x 7.5 x 3.48cm) Note: Must be used in conjunction with an ABWMK-KIT

QR-WRB-25 Wireless receiver box fits between Gold Mount battery and camera to accept any 25-pin insert style wireless receivers (such as Sennheiser #EK3041-U,RAMSA #Wx-RM770, TSP #WD-900R). Adapts camera to accept insert type wireless or provides an extra slot for additional receiver to cam eras already equipped to accept one receiver. Adds only 1" to camera length. Receiver takes power from camera battery. Standard three pin audio out connector. Size: 3-13/16" x 5-3/4" x 2-3/8" (9.7 x 14.5 x 5.8cm)

Compatibility

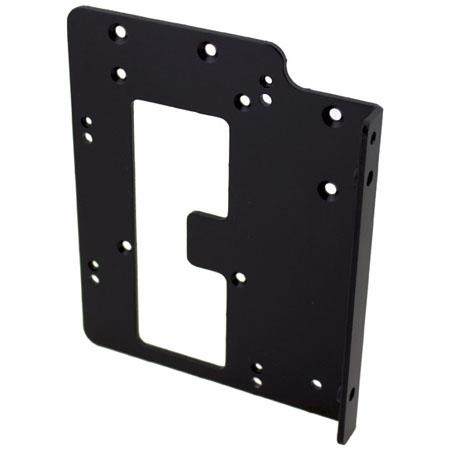

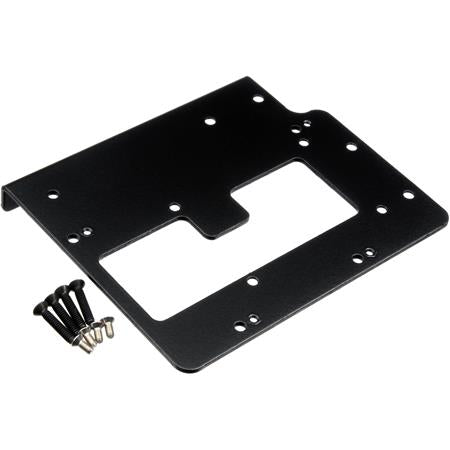

Anton Bauer Plate Universal BP
