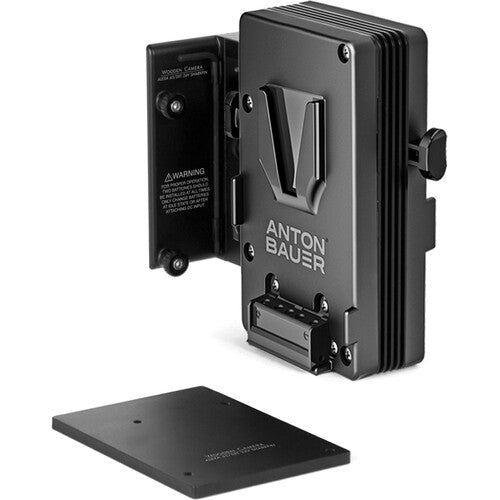

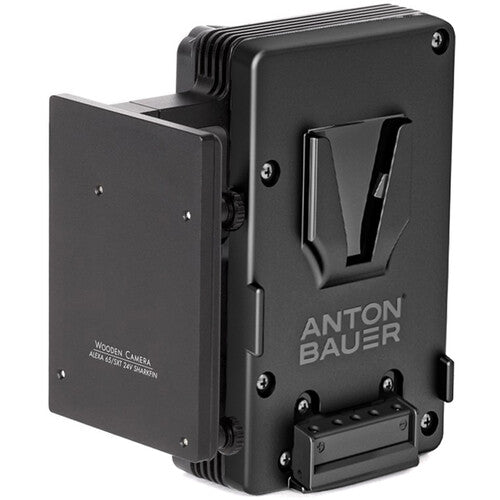

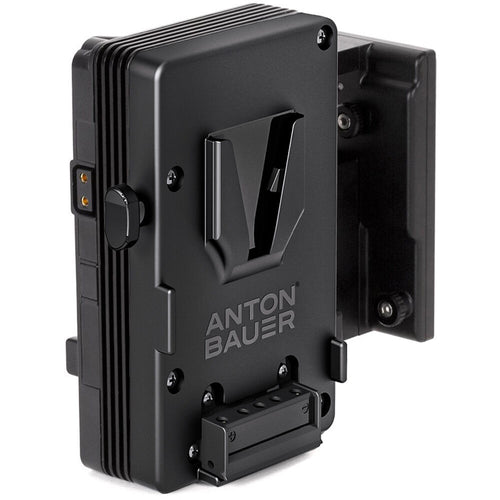

The Anton Bauer V-Mount 24V Sharkfin Battery Bracket enables you to power your ARRI ALEXA 65/SXT camera with separately available V-mount batteries. The bracket has built-in voltage boost circuitry that allows you to power your 24V camera from a single 14.8 VDC battery, while the dual battery plates allow you to run with two batteries and hot swap for virtually unlimited runtime.

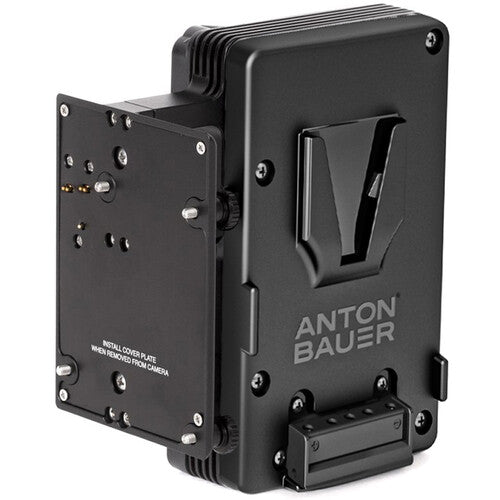

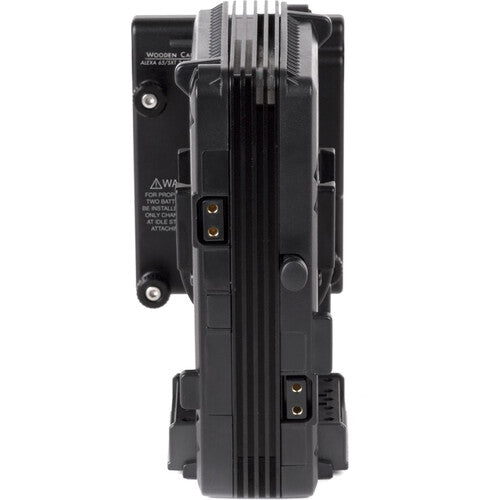

The bracket design allows you to mount the batteries facing each other for a more compact solution. It features two P-Tap ports on each plate, for a total of four ports to power various accessories. The bracket passes data through from the batteries to the camera's viewfinder. The bracket installs easily on the camera via captive thumbscrews on the plate, and a protective cover plate is included to place over the pogo pin plate when it is not in use.

The bracket features voltage boost circuitry, which allows a single 90Wh battery to power your 24 VDC camera for up to 30 minutes.

Compatibility

Anton Bauer Bracket Sharkfin Batt V-M 24V for ARRI Alexa 65, SXT

Key Features

• For ARRI ALEXA 65/SXT Camera
• Fits 2 x V-Mount Batteries
• 4 x P-Tap Power Outputs
• Hot Swap Onboard Batteries
• Passes Data to Camera
• Thumbscrews for Easy Installation
• Protective Cover Plate for Storage
