Anton Bauer Bracket D-Box Battery Gold Mt for Sony (Venice)

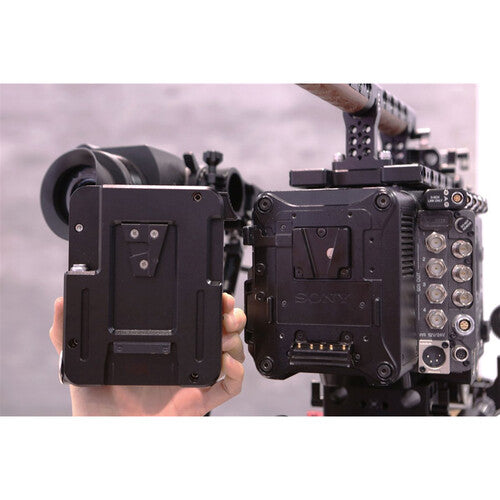

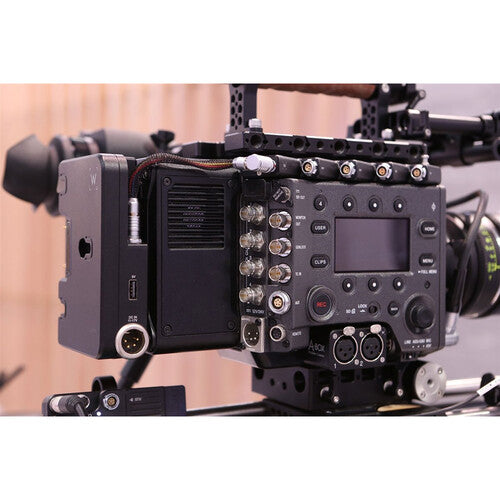

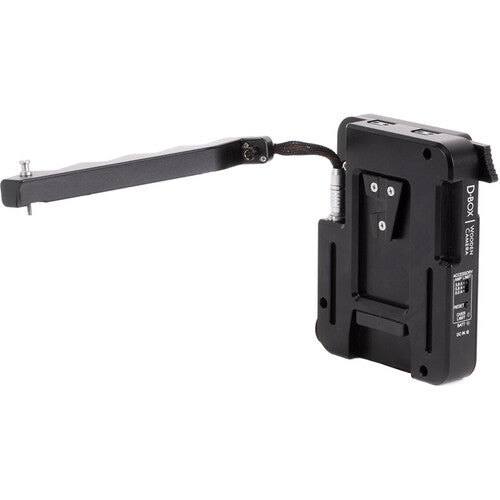

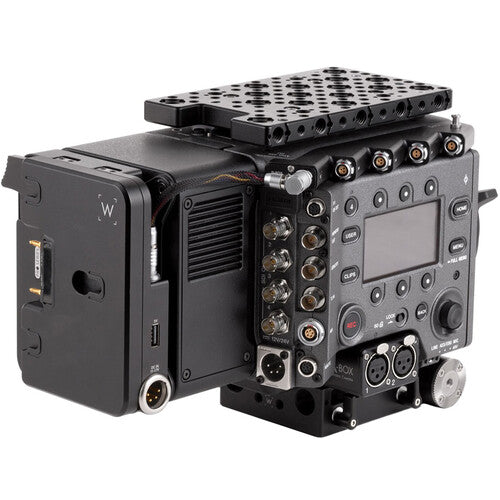

Power your Sony VENICE camera and accessories with the D-Box with Gold Mount Battery Bracket from Wooden Camera. The D-Box is a power distribution box made from durable materials that features a Gold mount battery plate for one 14.4V battery, and it mounts seamlessly onto the back of your Sony VENICE camera or the back of your AXS-R7 recorder, with a Gold mount plate on the opposite side to provide a variety of power options to your rig.

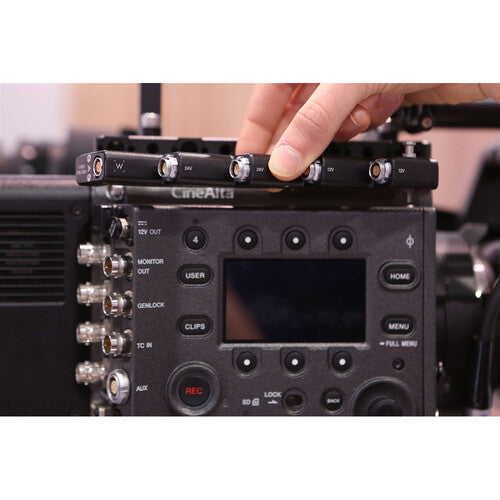

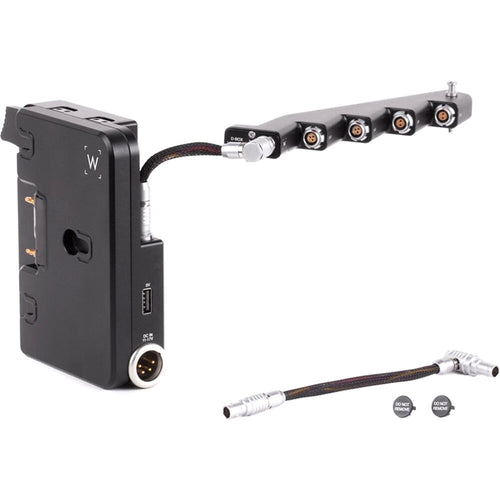

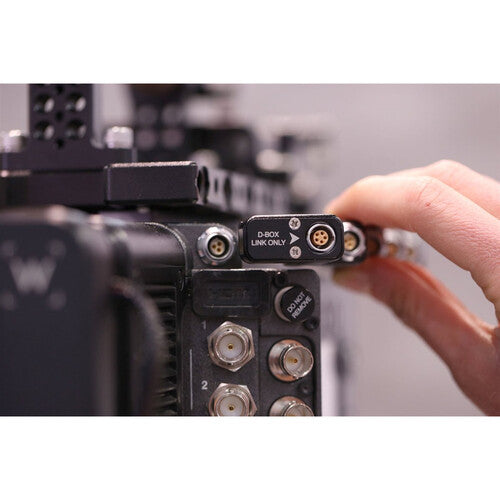

A power strip connects to the D-Box using an included 3- to 5-pin Fischer cable, and it mounts onto the top right side of the camera using a tape-hook thread. The strip features two 2-pin 12V LEMO-type outputs, two 24V 3-pin Fischer outputs, two 12V D-Tap outputs, and one 5V USB output. There is also a matching 4-pin 12.9 to 18V XLR input on the D-Box that matches the one on the camera, so you can use the camera's AC power supply to provide a hot-swap/failover system. Power will default to the AC adapter when plugged in, so you can save your battery level until you really need it. The Fischer outputs can also be used to pass run/stop trigger information from any ARRI run/stop trigger model to the camera.

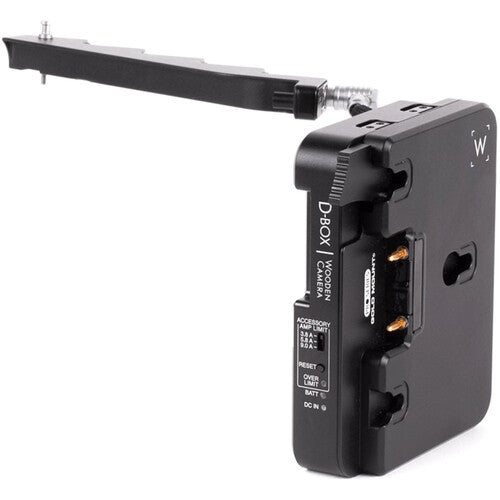

All outputs are active simultaneously, and they can be regulated using a fuse switch on the side to swap between 3.8, 5.8, or 9A to restrict power output to protect your equipment. There is a reset button if too much load current is provided to your accessories, so you can quickly reset and re-adjust your settings. Integrated LEDs indicate DC IN and BATT status, as well as battery voltage information.

Compatibility

Sony VENICE camera

Also compatible with but not limited to:

Anton/Bauer Dionic XT 90 Battery

Anton/Bauer Dionic XT 150 Battery

Key Features

• Power Distribution Box for Sony VENICE
• Gold Mount Battery Mount and Plate
• For 14.4V Block Batteries, Hot Swap
• Power Strip with LEMO/Fischer/USB/D-Tap
• 4-Pin XLR DC Input, Regulated Outputs
• Manual Fuse Selection to Regulate Power
• Fischer Ports Pass ARRI Run/Stop Trigger
• Mounts Directly on Camera or AXS-R7
