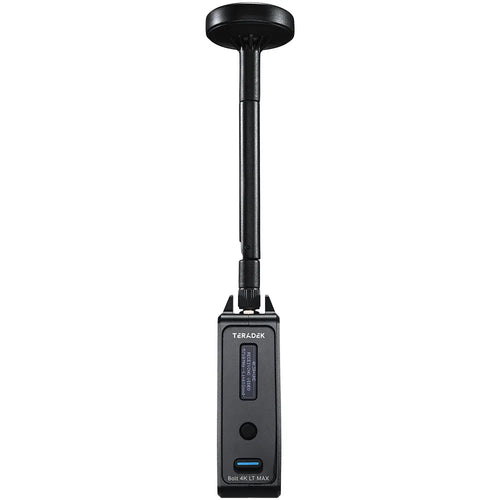

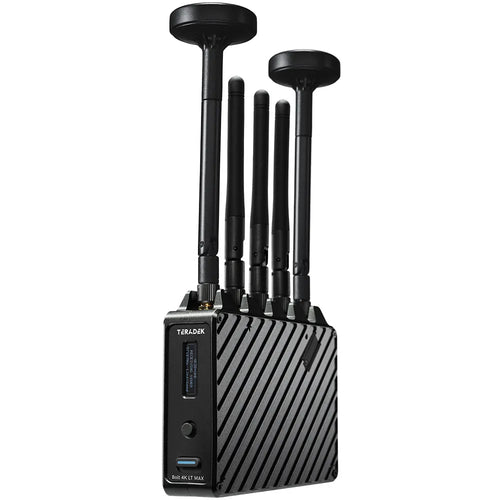

Teradek Bolt 4K LT MAX RX

The Bolt 4K LT MAX RX is a real time wireless video receiver that supports video signals up to 4Kp30 via HDMI, and 1080p60 via SDI, at a distance of up to 5000+ ft line-of-sight, with less than 1ms of delay. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and unlimited receivers using broadcast mode. These devices are cross-compatible with the entire Bolt 4K Family.

Real-Time 4K Wireless Video

Receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to and beyond 5000 + feet of range.

True HDR Colour

Supports 10-Bit 4:2:2

Rock-Solid Reliability

Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Universal Compatibility

Send signal to any Bolt 4K series RX device for expanding workflow requirements.

Broadcast Mode

Supports Broadcast Mode which means you can connect unlimited receivers simultaneously. Broadcast mode also can increase your wireless video range to 5000 feet and beyond with the next-generation Array 4K Panel Antenna.

Inputs/Outputs

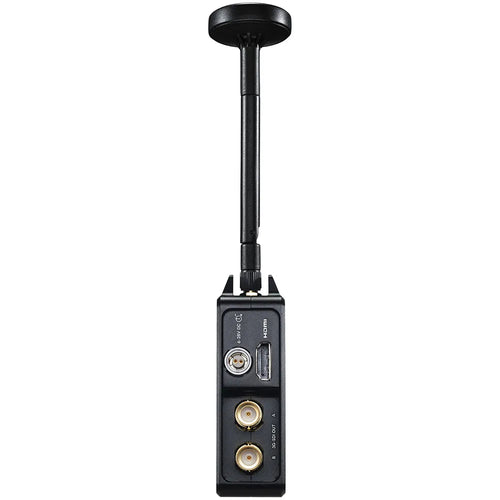

Outputs - 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

Battery Plates

Optional Gold Mount or V-Mount battery plate with pass-through power available.

Camera Metadata

Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you're after.

Bolt App for iOS

Remotely pair units, configure settings, and utilise all of Bolt 4K's features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K's integrated Bluetooth to give you all of its settings in the palm of your hand.

Key Features:

Bolt 4K Wireless BB3 Chipset

1524 m (5000 ft) Range

4K HDMI HDR 10-Bit 4:2:2

Zero-Delay Video Transmission

1080p60 with SDI Support

Stronger Link Robustness

Pairs with Up to 6 Receivers

What's in the Box:

Teradek Bolt 4K LT MAX RX

Lightstand Adapter 1/4-20in

Hot Shoe Adaptor

18 Inch 2-pin Lemo to P-Tap Cable

3 Foot USB Male Type A to USB Male Type B Cable

18 Inch Ultra Thin HDMI Male Type A to HDMI Male Type A Cable

10 Inch SDI BNC to SDI BNC Cable

6 Foot 2-pin Lemo to 18W AC Adapter (International)

Antenna 2dBi V4.9-7.3GHz RP-SMA

Antenna 2dBi H Mushroom V4.9-7.3Ghz RP-SMA
