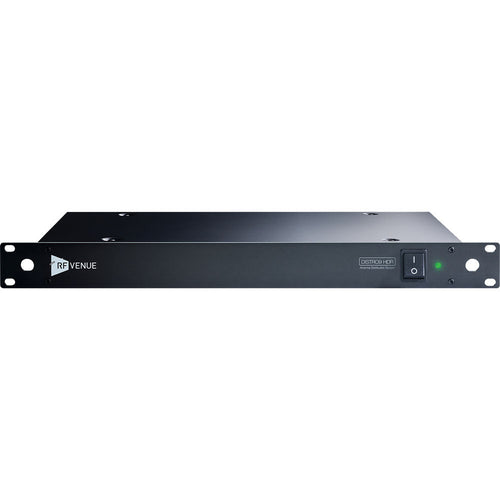

RF Venue Distro9 HDR Multi-Zone Antenna Distribution System

The Distro9 HDR Multi-Zone Antenna Distribution System from RF Venue delivers up to 9 low-noise channels of diversity wireless and eliminates the need for internal splitters, replacing them with state-of-the-art divide-by-three circuitry. It can be used to provide nine RF channels of wireless with clean output, low-noise amplification, and a gain structure for high dynamic range across the VHF, T-Band, and UHF spectrum.

Any Distro9 HDR RF output can be cascaded to a second Distro9 HDR, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in 2 RU space. There are two zone antenna inputs on the Distro9 HDR that provide coverage for large areas or multiple rooms, each with DC power for in-line amplifiers or active antennas. In addition, it can provide DC power to wireless microphone receivers with an optional DC cable kit (sold separately) and can be powered from a DC battery source for location sound cart applications.

Furthermore, an internal I/O section provides a range of future module add-on capabilities ranging from remote web-based spectrum monitoring to bandpass filtering, and more. The Distro9 HDR Multi-Zone Antenna Distribution System is highly configurable to meet the current and future needs of various professional wireless microphone systems.

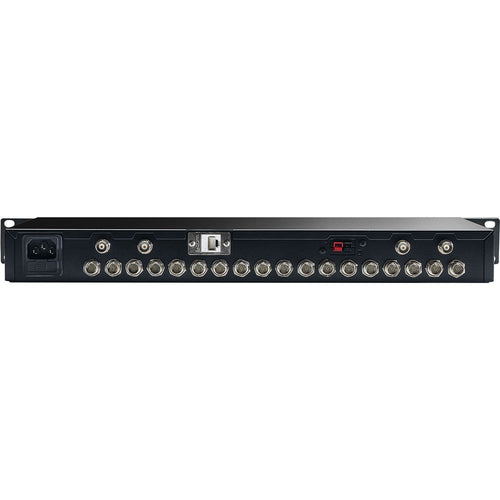

Two input zones, each with 2x (diversity) RF inputs that provide maximum flexibility for covering large areas or multiple rooms with DC power available. This can be used for in-line amplifiers or active antennas.

The Distro9's unity gain RF outputs can be cascaded to a second Distro9, which eliminates the need for dedicated cascade ports and provides up to 17 wireless microphone channels in a 2 RU space.

Featuring gain flatness across VHF, T-Band, and UHF, the Distro9 HDR is built for the rapidly changing RF spectrum landscape. An internal I/O section provides a range of future module add-on capabilities. This ranges from network spectrum analysis to filtering and more.

Key Features:

For Wireless Microphones

Connect up to 9 Receivers in 1 RU

Two Zones of Antenna Coverage Built In

Receivers & Accessories DC Power Port

Stability across VHF, T-Band, and UHF

High-End RF Performance

What's in the Box

RF Venue Distro9 HDR Multi-Zone Antenna Distribution System

IEC Power Cable
