RF Venue 4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz)

The RF Venue 4 Zone is an antenna combiner for wireless microphones receivers, which combines up to four separate pairs of diversity antenna connections. Designed to take the complexity out of multi-zone signal management, it is ideal for use in multi-purpose rooms, indoor-outdoor configurations or main stages with secondary breakout rooms.

The unit operates in the 470 to 960 MHz frequency range and is compatible across all brands. It allows for fine-tuning of RF levels in each coverage area by offering RF signal attenuation control for each channel, down to -31 dB in 1 dB steps. For roaming microphone transmitters, selectable On/Off inputs let you choose which coverage zones are active, saving setup and breakdown time when working on location. Additionally, the RF Venue 4 Zone can provide 12 VDC power to active antennas or in-line amplifiers on long cable runs.

Antenna combiner for multi-zone wireless microphone systems-solves distribution challenges by making signal management simple

470 to 960 MHz frequency range, compatible across all brands

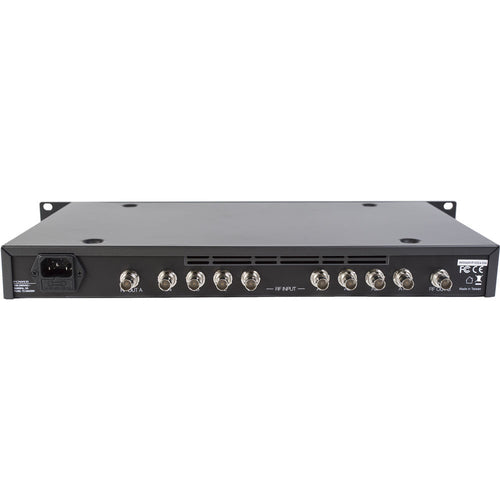

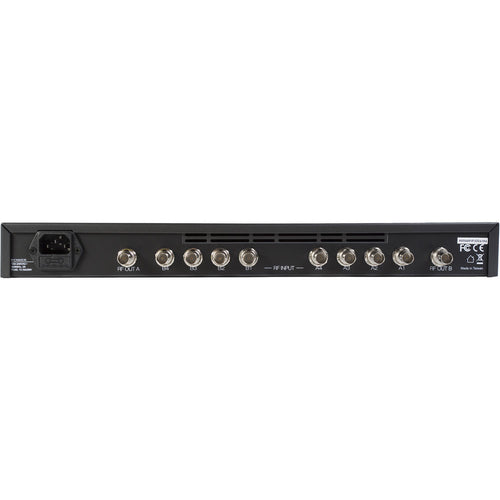

Combines up to four separate pairs of diversity antenna connections to one A and B output

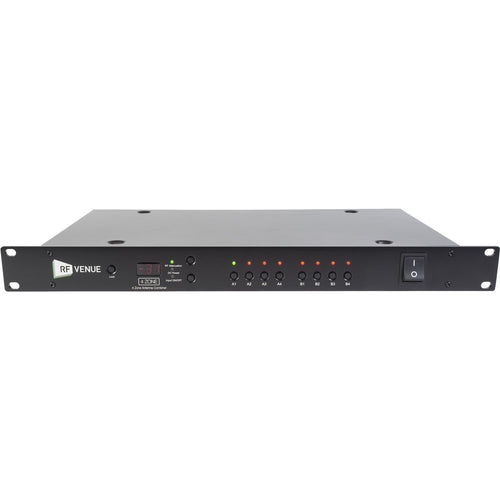

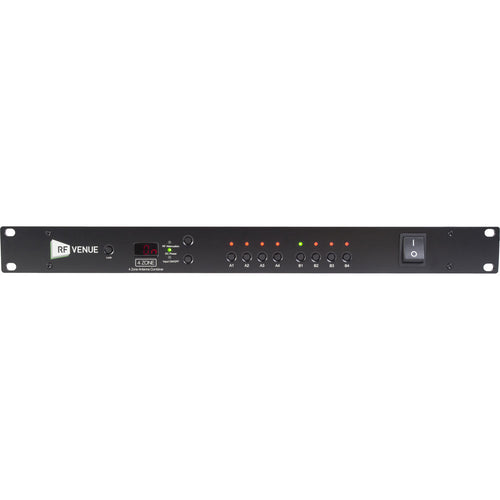

Individual-channel, RF signal attenuation control down to -31 dB, in 1 dB steps

Selectable 12 VDC power for active antennas and in-line amplifiers on long cable runs

Selectable On/Off inputs allows for quick control of coverage zones for roaming microphone transmitters

What's in the Box

RF Venue 4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz)

AC Power Cable

BNC to BNC Coaxial Cables (8")
