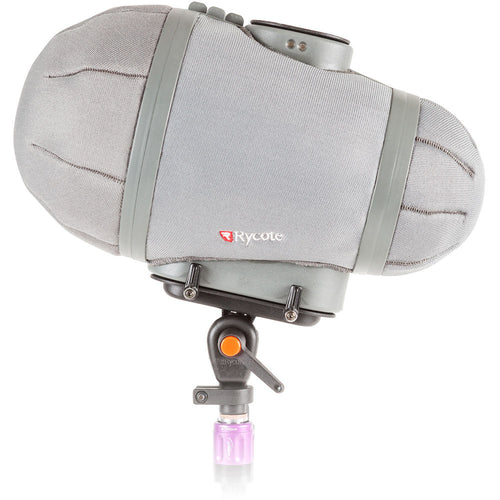

Rycote Cyclone MS Kit 6 Windshield for Neumann KM 120 & KM 140

The Rycote Stereo Cyclone MS Kit 6 is a windshield system offering acoustically transparent protection for location sound mixers and recordists using a mid-side array of Neumann KM 120 and KM 140 microphones in broadcast TV, film, video, and game audio production. It features an enhanced Connbox design with no straight or parallel surfaces to reduce room tone and resonance. Its Lyre mic suspension and Floating Basket Suspension improve vibration isolation and minimise handling noise.

The 3D-Tex material delivers significant attenuation of wind noise while being easy to clean. Further contributing to the system's low maintenance is the magnetic locking design, which allows one-handed opening and closure. The XLR3F inputs match the connectivity of your Neumann KM 120 and KM 140 microphones, and the XLR 5-pin output contributes to effective cable management. Boompole compatibility is offered via a brass 3/8" UNC female thread.

Built by Hand

Each Stereo Cyclone windshield is individually hand-built in the Rycote factory in Stroud. This very specialised manufacturing process is carried out by a highly skilled Rycote technician and takes many hours to complete.

Enhanced Connbox Design

Designed specifically for internal cable routing, isolation, and vibration reduction, each Connbox has been optimised for specific stereo and multichannel microphone configurations. Every wire and connector has been precisely measured to offer maximum performance.

Lyre and Floating Basket Suspension

Rycote uses its industry-leading Lyre microphone suspension to reduce the bulk of shock and handling noise. The Stereo Cyclone also features the Rycote Floating Basket Suspension: an innovative design that prevents natural resonances and vibrations from bypassing the main suspension and radiating from the structure of the basket itself.

The Lyre principle is incorporated into the portions of the suspension that connect directly to the basket; the entire structure "floats", isolating problematic internal vibrations originating from boompoles and other sources.

Stereo configurations are particularly susceptible to the effects of acoustic re-radiation, since more microphones point at the overall surface of the basket. The incorporation of the Floating Basket Suspension results in a windshield with superb vibration isolation.

Acoustically Transparent Wind Protection

An open-cell structure consisting of curved contours and no straight or parallel surfaces greatly reduces room-tone effects inherent in conventional tubular windshield designs. The physical design shifts the overall bulk to the basket front. The aerodynamically efficient asymmetric basket covered with 3D-Tex material provides enormous benefits in terms of surface turbulence and acoustic impedance, resulting in wind-noise reduction comparable to the combined modular-style windshield/fur cover performance. In truly extreme weather conditions, a Cyclone Windjammer (available separately) can be used to deliver superior wind-noise reduction.

Easy Removal and Attachment

The windshield can be removed from or attached to the suspension in an instant using just one hand, allowing audio professionals to capture the best possible audio at any moment in any environment. This is the unique benefit of Rycote's Z-Locking System. Reassembly is automatic as components magnetically snap into perfect alignment.

Low Maintenance

Location sound mixers require equipment that will not only withstand extreme conditions, but also maintain consistent performance. Maintenance is often a time-consuming, yet necessary evil. The Stereo Cyclone's 3D-Tex was developed for both outstanding performance and ease of maintenance. Dust it off after mild use or rinse and air dry after heavy use to maintain outstanding, transparent, and consistent performance for years of faithful use.

Key Features:

Lyre and Floating Basket Suspension

Improved Vibration Isolation

Acoustically Transparent

Reduced Room Tone and Handling Noise

Significant Wind Noise Reduction

Magnetic Locking System

No Straight or Parallel Surfaces

Low-Maintenance, Easy to Clean

XLR Inputs

XLR 5-Pin Output

What's in the Box:

Rycote Cyclone MS Kit 6 Windshield for Neumann KM 120 & KM 140
