Wooden Camera Panasonic VariCam 35 Unified Accessory Kit (Base)

Wooden Camera Panasonic VariCam 35 Unified Accessory Kit (Base)

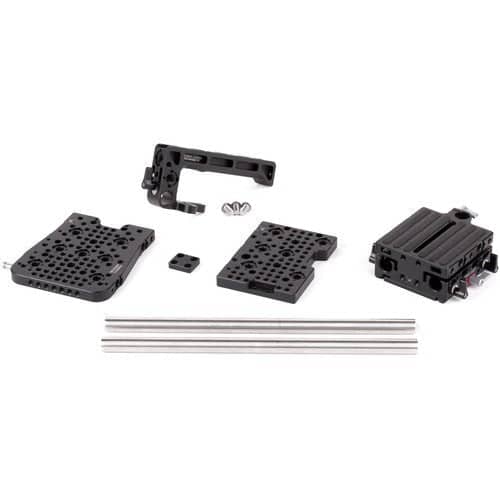

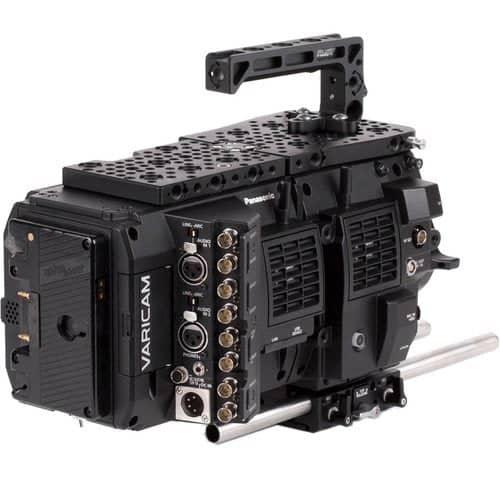

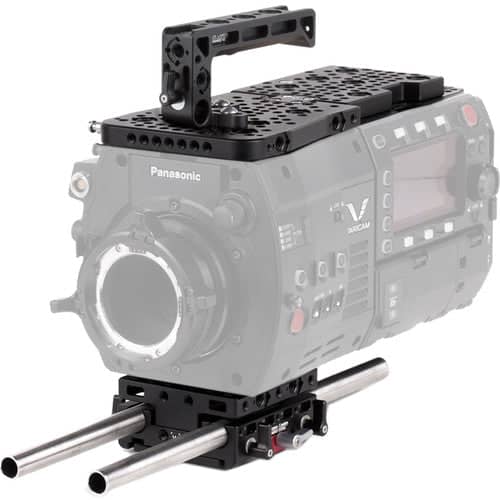

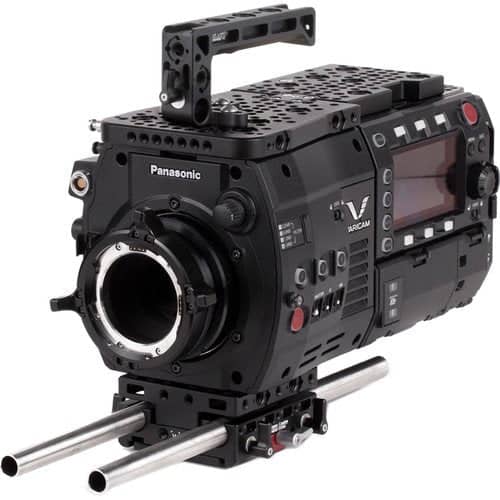

The Panasonic VariCam 35 Unified Accessory Kit (Base) from Wooden Camera is designed for the Panasonic VariCam 35 camera. The VariCam 35 accessory package includes Top Plate (VariCam 35, Front), Top Plate (VariCam 35, Back), Unified Baseplate (Sony FS5, VariCam LT, VariCam 35), two 15mm Rods (12"), and Top Handle (Cheese).

The Top Plate is for use with the rear camera module of the Panasonic VariCam 35 recorder unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent). The included link piece can be installed to bind the front and back plates together.

The Unified Baseplate is designed for use with Sony FS5, VariCam LT, and VariCam 35 cameras. It is a quick-release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have 2 locking thumbscrews per side.

The two 15mm Single Support Rods (12") are used for mounting accessories including follow focus systems, matte boxes, lens supports, and servo motors.

The Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts onto two 1/4-20 holes spaced 1.4" (36mm) apart from the centre. The cheese grip handlebar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting.

Wooden Camera Top Plate for Panasonic VariCam 35 Brain Unit (Front)

The Wooden Camera Top Plate is for use with the front camera module of the Panasonic VariCam 35 brain unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent).

Wooden Camera Top Plate for Panasonic VariCam 35 Recorder Unit (Back)

The Wooden Camera Top Plate is for use with the rear camera module of the Panasonic VariCam 35 recorder unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent). The included link piece can be installed to bind the front and back plates together.

Note: Front plate sold separately

Wooden Camera Unified Baseplate for FS5, EVA-1, VariCam LT, VariCam 35

The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and it offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS5 and Panasonic EVA-1, VariCam LT, and VariCam 35. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

The Dovetail Camera Plate features a long slot along its centre that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).

Features:

Supports 15mm LWS rods at the correct lens height

Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)

Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate

Two quick-release options—remove Core Unit or remove Dovetail Camera Plate

Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig

Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates

Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates

A long slot along the centre allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart

Anti-twist, non-slip rubber surface

Upgradable for VCT-14 compatible mounting options

Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability

Backward compatible with original Wooden Camera Quick Dovetail

Wooden Camera 15mm Support Rod (12")

This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off and has a hollow interior providing maximum strength.

Wooden Camera WC-153900 Top Handle (Cheese)

The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts onto two 1/4-20 holes spaced 1.4" (36mm) apart from the centre. The cheese grip handlebar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting.
