Wooden Camera AJA CION Accessory Kit (Base)

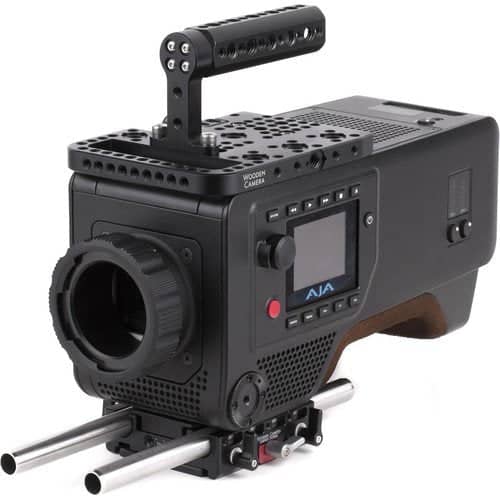

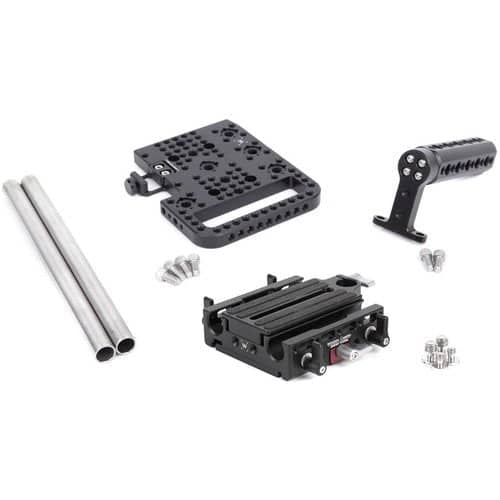

The AJA CION Base Accessory Kit from Wooden Camera is a camera support package designed for the AJA CION camera. It includes a top-mounted cheese plate for accessory attachment, a fixed baseplate that holds two 9"-long 15mm rods at the correct lens height and a quick-release NATO top handle that attaches to the top plate. The handle features a rotating top grip, multiple mounting threads for accessories, an integrated shoe mount, and a 15mm/19mm rod opening.

Wooden Camera Top Plate for AJA CION

The Wooden Camera Top Plate for AJA CION attaches via four 1/4"-20 screws to the camera top and features rows of 1/4"-20 and 3/8"-16 holes in standard spacing. The original CION handle included with the camera can be re-installed on the top plate. ARRI style accessory mounts with 3/8"-16 threads and locating pins are present on top and side. Integrated HDMI clamping mechanism locks cables securely in place and prevents strain or damage. The open area over the removable CION cover plate for servicing flange focus.

Note: Tape hook should be removed from the top and installed on the camera side.

Wooden Camera Fixed Base for AJA CION

The Fixed Base for AJA CION from Wooden Camera provides LWS 15mm pass-through rod support at the correct lens height. The baseplate can attach to any tripod plate or ARRI standard bridge plate, such as Wooden Camera's 19mm or 15mm Studio Bridge Plates. When rods are not needed, a separately-available Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.

Features:

1/4"-20 and 3/8"-16 holes on sides for attaching accessories

1/4"-20 and 3/8"-16 holes on the bottom for attaching to tripod or bridge plate

Optional GO Shoulder low-profile shoulder pad and optional Rosette Bracket available

Wooden Camera 15mm Support Rod (9")

This is a single, 9" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off and has a hollow interior providing maximum strength.

Wooden Camera NATO Handle Kit (Plus, 100mm Rail)

This Wooden Camera NATO Handle Kit, consisting of a quick-release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.

NATO Quick Release

The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.

Rosette Based Rotating Grip

The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.

Sideways 15mm Rod Clamp

The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.

Front/Rear Rod Openings

A forward-facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.

Integrated Cold Shoe

A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.

Accessory Threads

1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.

Optional Front Rod Clamp

Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
