SKU: GC49-52.NANO98NK-CXV

Core SWX RED Komodo BP Mount To V-Mount Plate 2 x Nano V 98 Battery Bundle

Core SWX RED Komodo BP Mount To V-Mount Plate 2 x Nano V 98 Battery Bundle

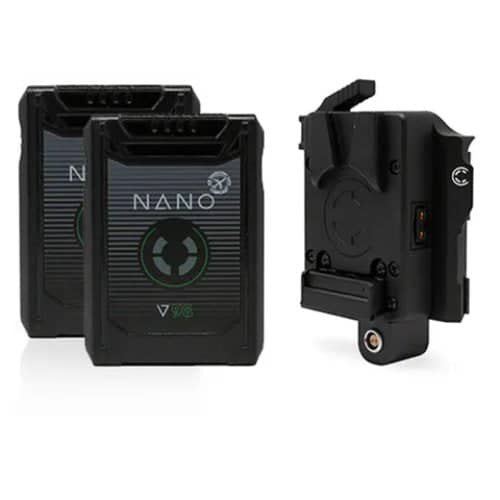

This kit includes two NANO Micro v-mount battery packs and one v-mount plate that mounts directly to the back of the RED Komodo.

The Nano-Micro and X2 Mini are quite possibly the smallest battery/charger combo on the market today. The NANO Micro measures in at less than 4" in height and 2" in-depth, while weighing a feathery 1.2 lbs., making it the perfect "grab and go" pack for the majority of powering applications. Capable of handling up to a 10A load, consider these packs for lighter camera powering applications, onboard monitors, recorders, wireless TX/RX, etc.

The 14.8v, 98wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO, and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification.

The Core Nano-Micro packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.

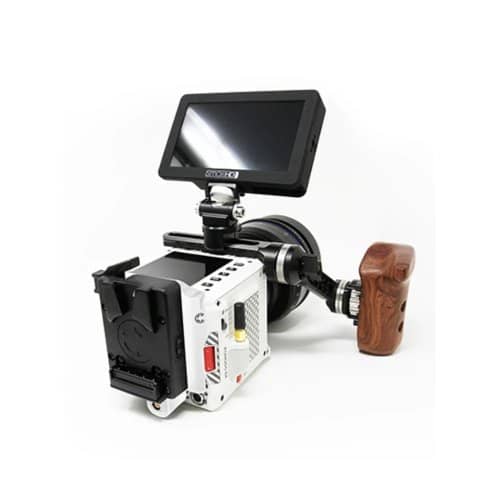

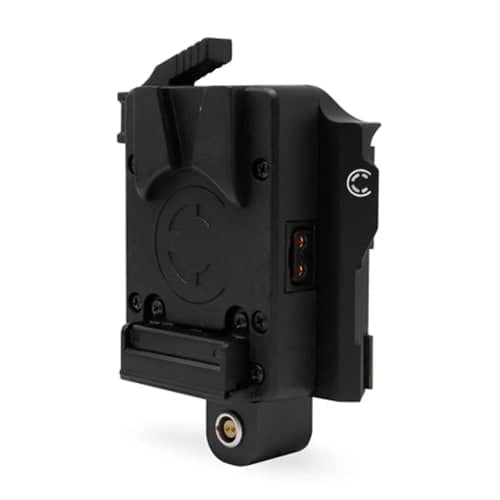

The CXV-KOMU is a BP to v-mount plate direct mount specifically designed for the RED Komodo camera, allowing the use of 14.4V V-Mount batteries and leaving the camera's DC input available for AC power and battery hot-swap. When used with "smart" batteries that pass SMBUS data like Core SWX batteries, the camera will read battery percentage and runtime, providing accurate remaining battery capacity info. It's equipped with 3 DC output ports: P-Tap, USB, and 2pin Lemo. The plate also has a reinforced V-Mount locking mechanism, making it the most robust V-Mount plate on the market.

Regular price $1,265.00
Sale price $1,265.00 Regular price $1,275.00
Pay with
Pay with

Request a Price Match

Fill out the price match form below, and we will be in touch shortly.

$1,265.00

Product Overview

Core SWX RED Komodo BP Mount To V-Mount Plate 2 x Nano V 98 Battery Bundle

This kit includes two NANO Micro v-mount battery packs and one v-mount plate that mounts directly to the back of the RED Komodo.

Need advice?

Speak to one of our dedicated Australian-based sales team members.
